vacuum diagram

[superj]

anyone got one for a 4.2 motor on the wrangler? i'll even take one for a 4.2l from a cj. the ones on this jeep are not right. i have broken lines, rotted in half lines, and stuff just hanging out in the open.

i have had an issue with dieseling upon shut off and was looking for a vacuum leak. well, boy did i find them. now i just need to know what lines go where. any pics or diagrams would be a huge help



[TerryMason]

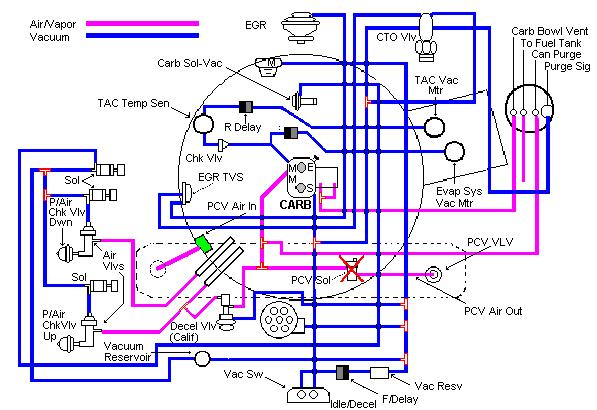

Something like this?



[superj]

yup. i found half of that earlier
