1998 Jeep Cherokee Battery Tray Replacement

rwilliamsjr26

New member
I am replacing the battery tray on my 1998 Jeep Cherokee Sport 4.0 and I'm having trouble with an electrical connection that is at the bottom of the tray. I need to disconnect a connection to feed it through the tray and I cannot figure out how to release the plug. Pictures attached.

Thanks for any help.


Attachments

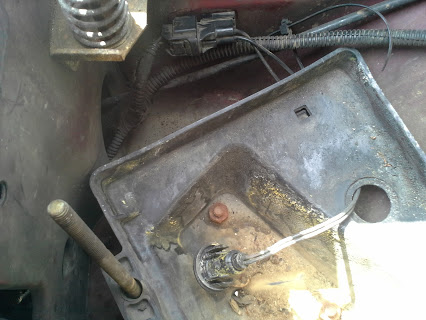

  • Jeep_Battery_Tray_1.jpg
    39.9 KB · Views: 2,329

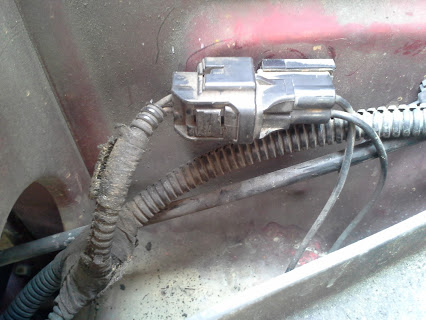

  • Jeep_Battery_Tray_2.jpg
    39.6 KB · Views: 1,058

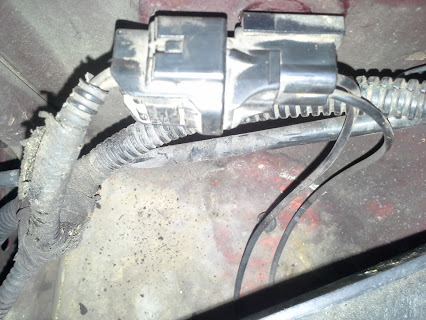

  • Jeep_Battery_Tray_3.jpg
    46.8 KB · Views: 1,520

Push the tab like button and pull it apart. Then the half you need to pull through the hole is attached with those barb thingies. Pry them out with a panel popper and pull the sensor out the hole
