Seeking help (measurements) for a Jeep monster truck woodworking project!

[roha2236]

I'll just come out and admit it...I don't own a Jeep (which is why I'm here...hehe). I won't mention that I have a 4Runner instead....oops:scratch:. A long time ago I promised my nephews some Jeeps made out of wood. I finally got around to making them after picking up a book with plans for a monster truck, although it was for a 1948 Ford pickup instead. I used the plans in the book for the bottom half of the trucks, but I have to come up with the "Jeep" part on my own. I was hoping someone would be so kind as to take a few measurements of their TJ (ideally)?

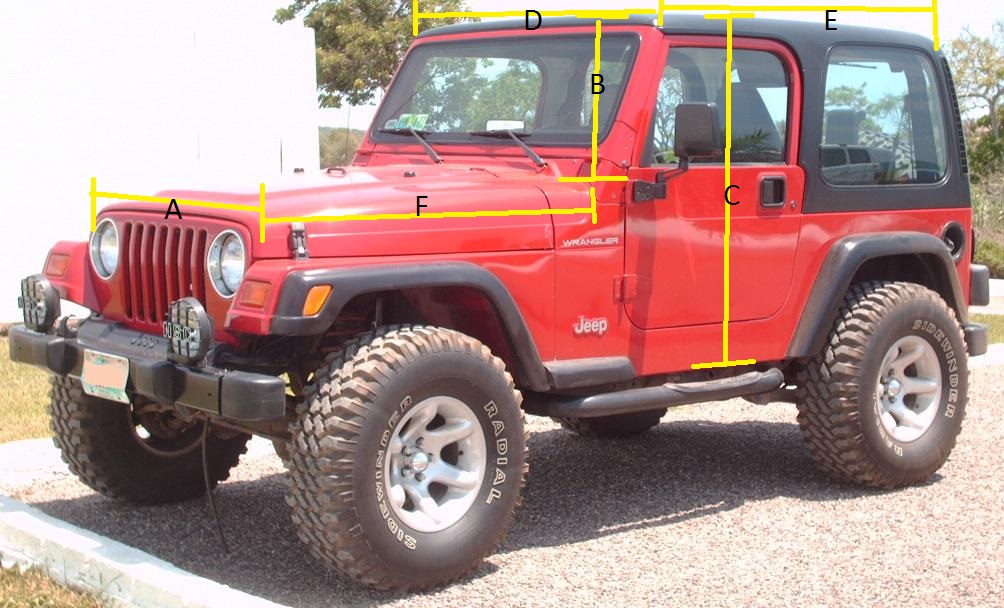

Here's a picture of the only dimensions I think I'll need:


Thanks in advance!



[eric m]

I have the dimensions for you. *Note I rounded a couple off for easy conversion.
A= 44"
B= 26"
C= 50"
D= 54"
E= 64"
F= 48"

Hope this helps. Please post up some pictures when you get them done.



[TerryMason]

Props for taking those measurements Eric - that was cool.
