mounting lights on windshield??????

[88WRANGRED]

i got some piaa 520 series lights that i got back in jan, and they are sitting in the box under my bed so i ordered some windshield light mount brackets for them. how should i wire them up???/

what seems to be the best way to do it??

thanx in advance hopefully the brackets will be at my house when i get home from work so i can play with some tools !!!!

ray



[XJNick]

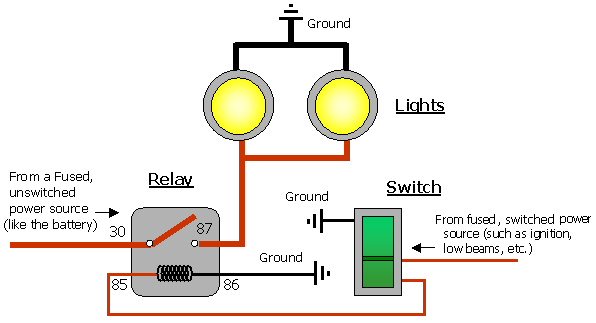

You need to use a relay. Be sure you have a fuse between the relay and the battery, and between the battery and the fog lamp switch. Here is a drawing I made awhile back for a 4-wire relay. The terminal numbers should be the same on any automotive relay. A five wire relay will be wired the same way, but ignore the 87A terminal.

Terminal#
30 = Power source input from battery
87 = Power output to lights
87A = Not used
85 = Relay coil trigger (from switch)
86 = Relay coil ground

Hope that helps :mrgreen:
-Nick :!:



[Snitty]

good descriptive drawing... once you know how to use relays, you'll want to hook everything up through them... they help a lot.. and you can get creative with them too



[Joopin]

Paragon Pics

When I installed mine I ran the wires into the jeep by drilling a 1/2" hole right past the dash below the windshield hinge. I also made little brackets to keep the wires getting crushed in the door when it is closed. I didn't use a relay (I didn't know how to) but I probably should have. I put the switch to the left of the rear defrost switch. I only have this one pic online right now,

If you want more detailed pics just give me your email and I can send what you need. good luck
