Install a cold air intake on a Jeep Wrangler TJ

[TerryMason]

There are a few things that you can do to a Wrangler (or any vehicle for that matter) that will improve power and fuel economy, and installing a cold air intake is one of them. The idea is to allow the engine to draw in large amounts of cool fresh air easily, aiding in the combustion process.

In order to give this a try, I decided to install a cold air intake in my 2005 Jeep Wrangler. I went with the AeF air intake (you can read my thoughts on this particular intake here).



[TerryMason]

Step 1 – Remove the factory air intake.

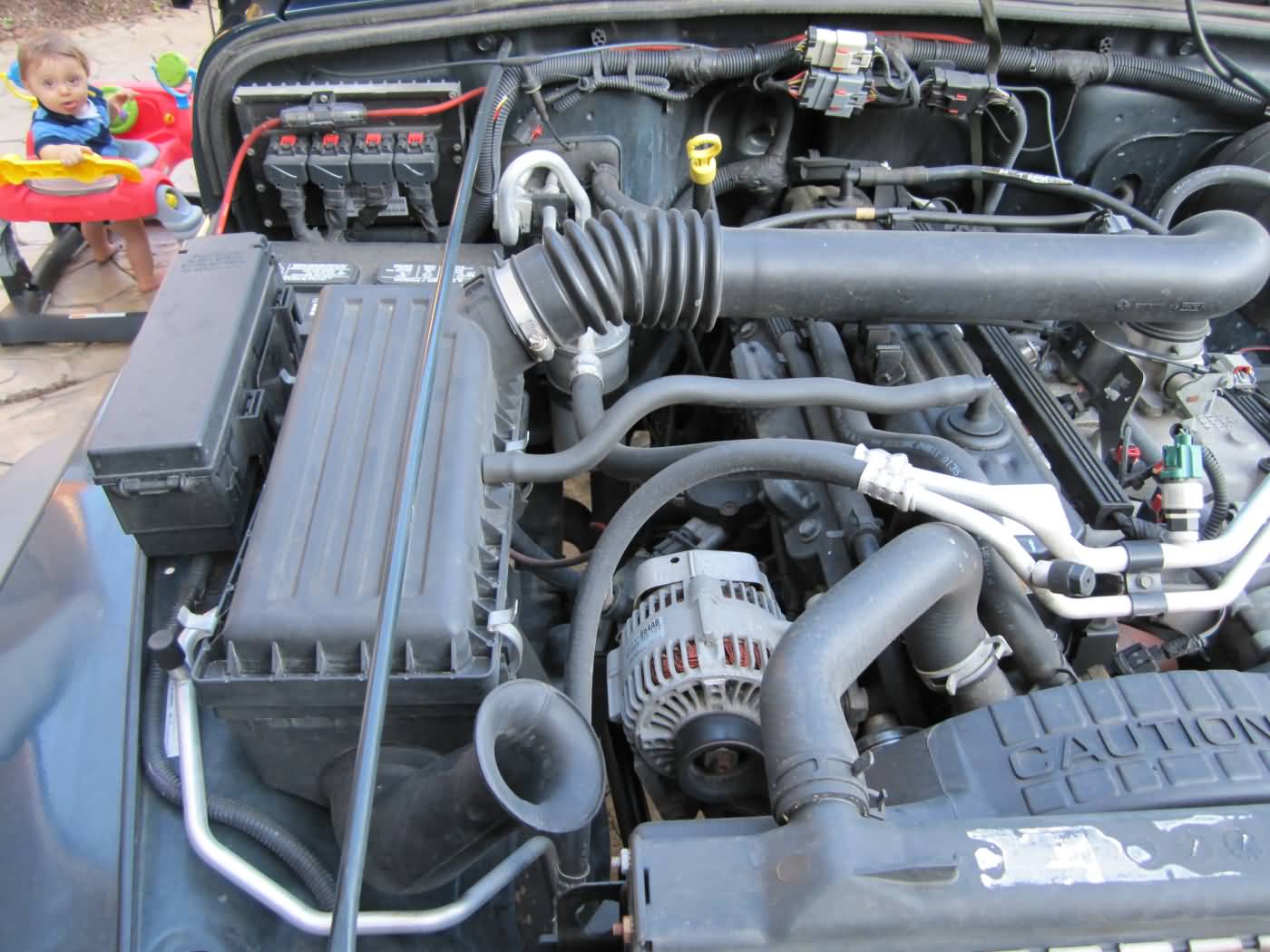

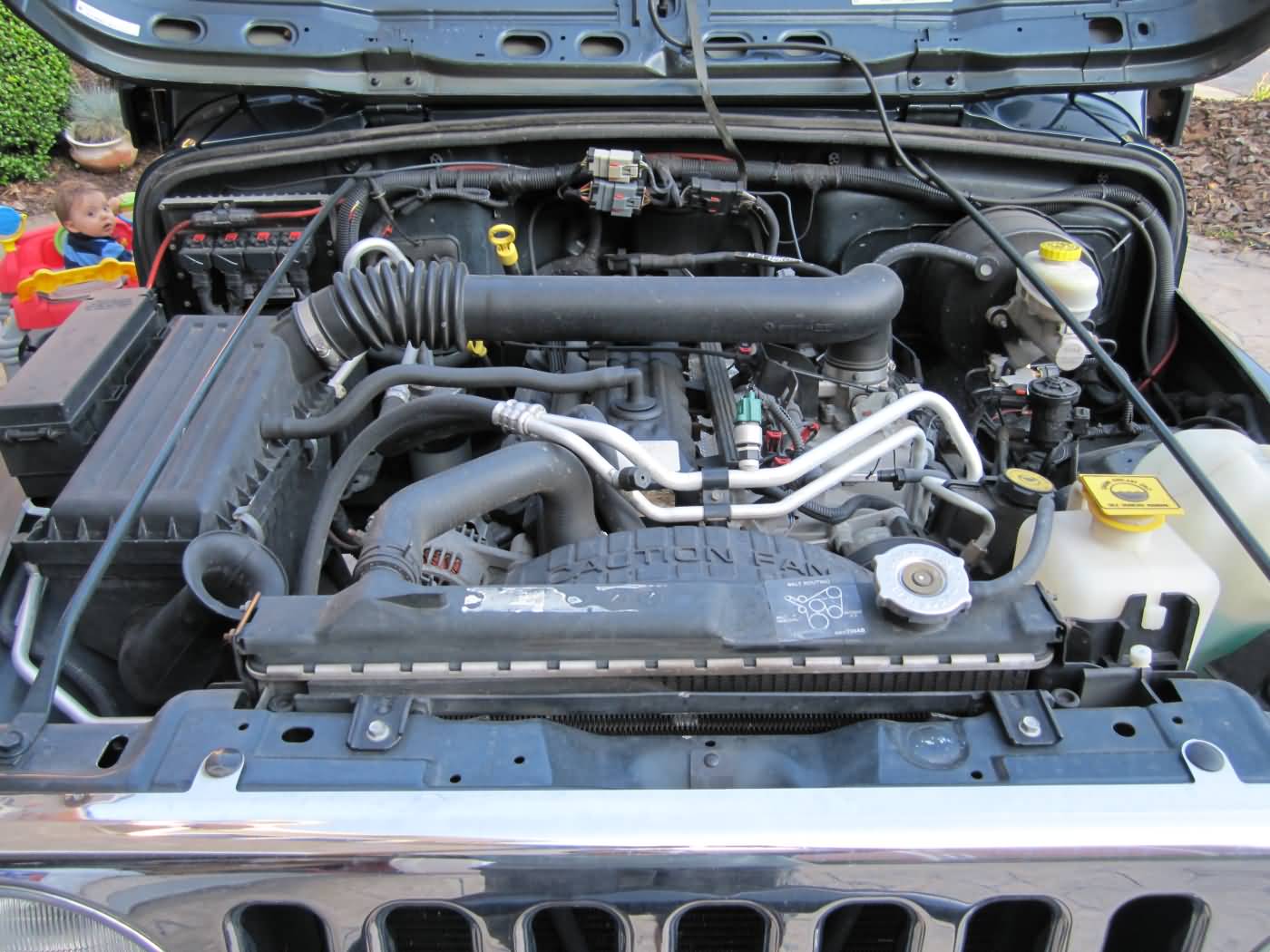

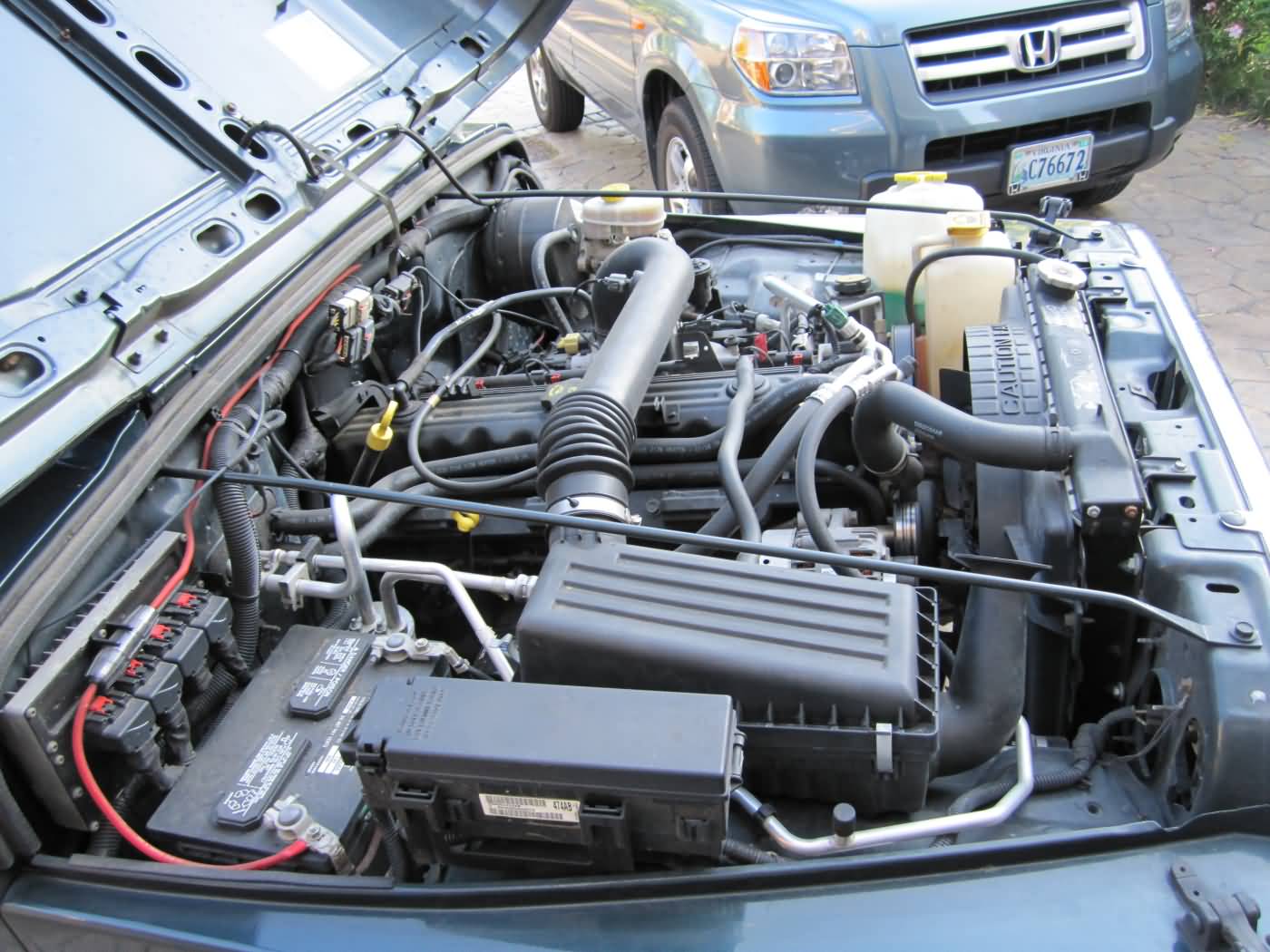

As you can see from the shots below, the factory intake has a small horn that allow air into the air cleaner. While this isn’t great for drawing air in, it does an excellent job of keeping water out.

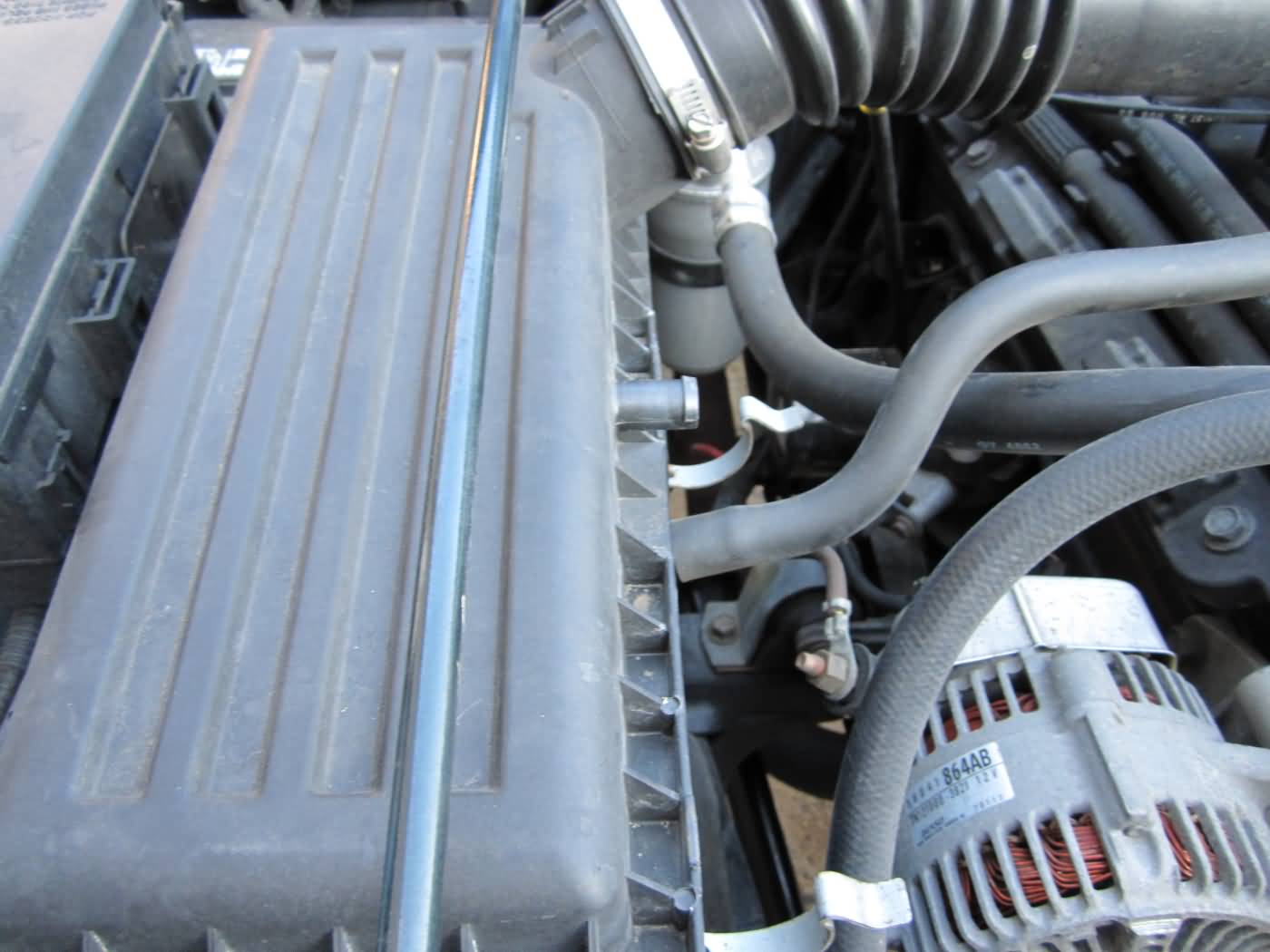

So, we need to begin by removing the factory setup. First unplug the hose going to the air box

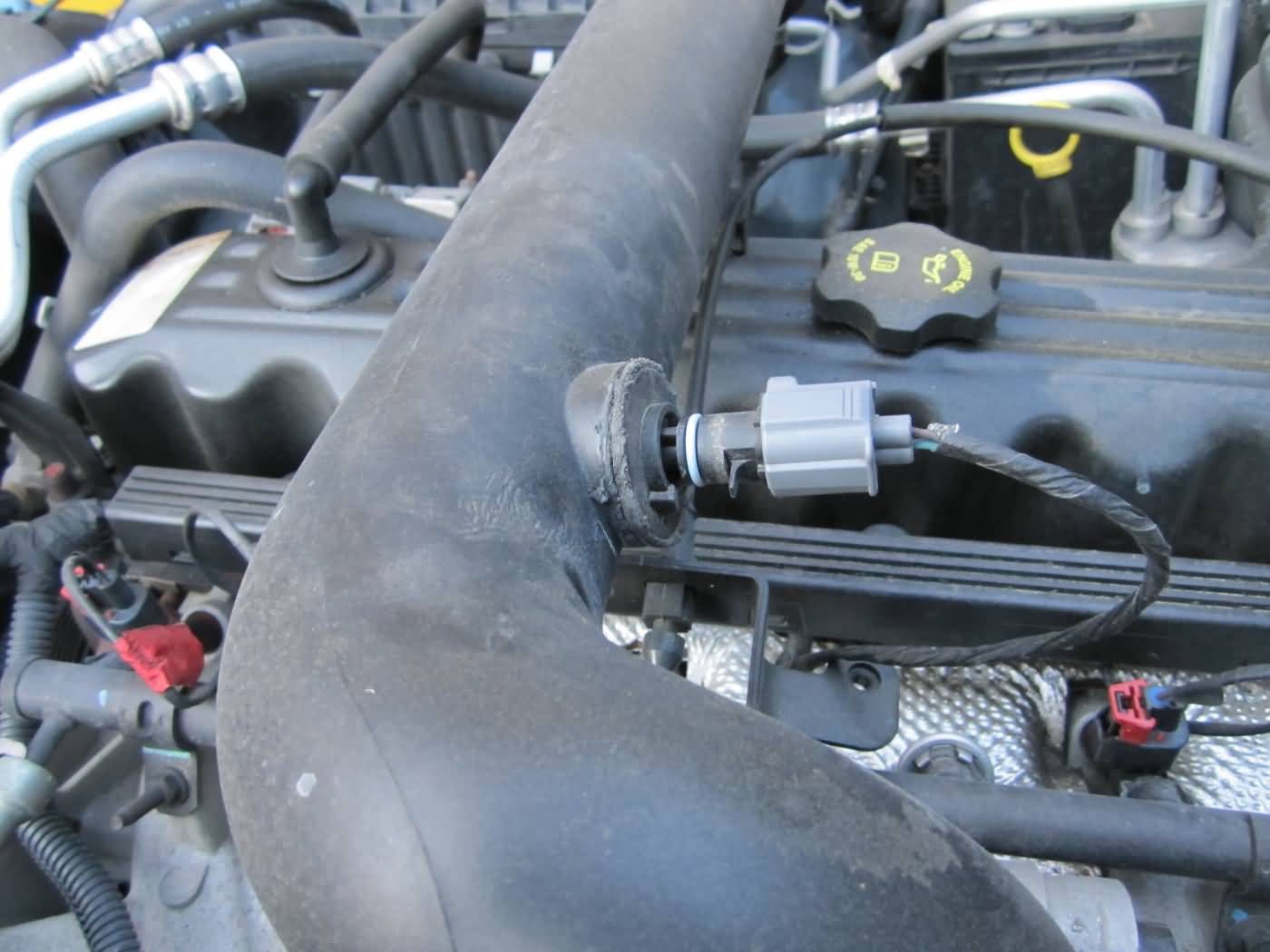

Then carefully unplug the air sensor

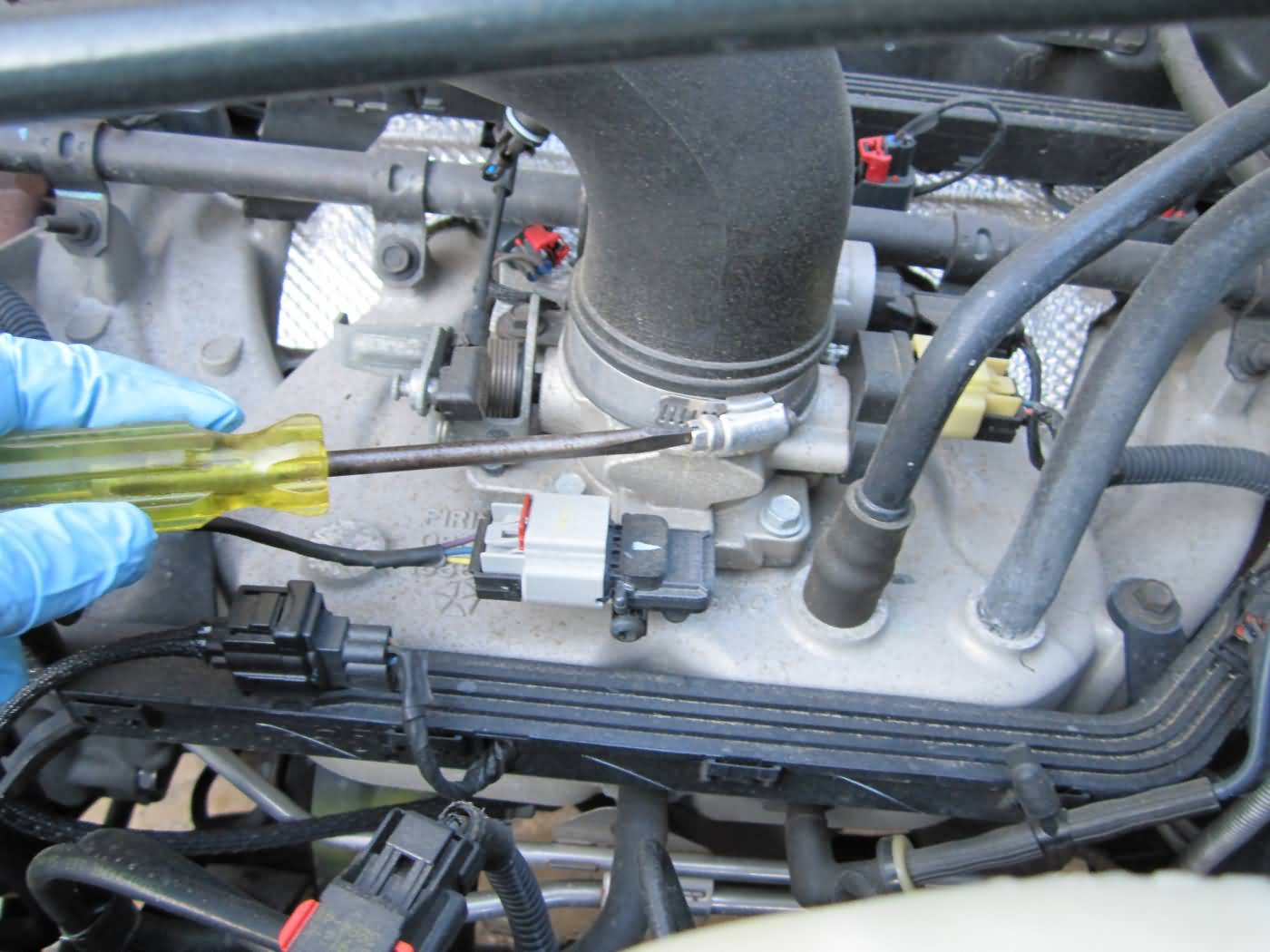

Loosen the hose clamp that holds the intake onto the engine

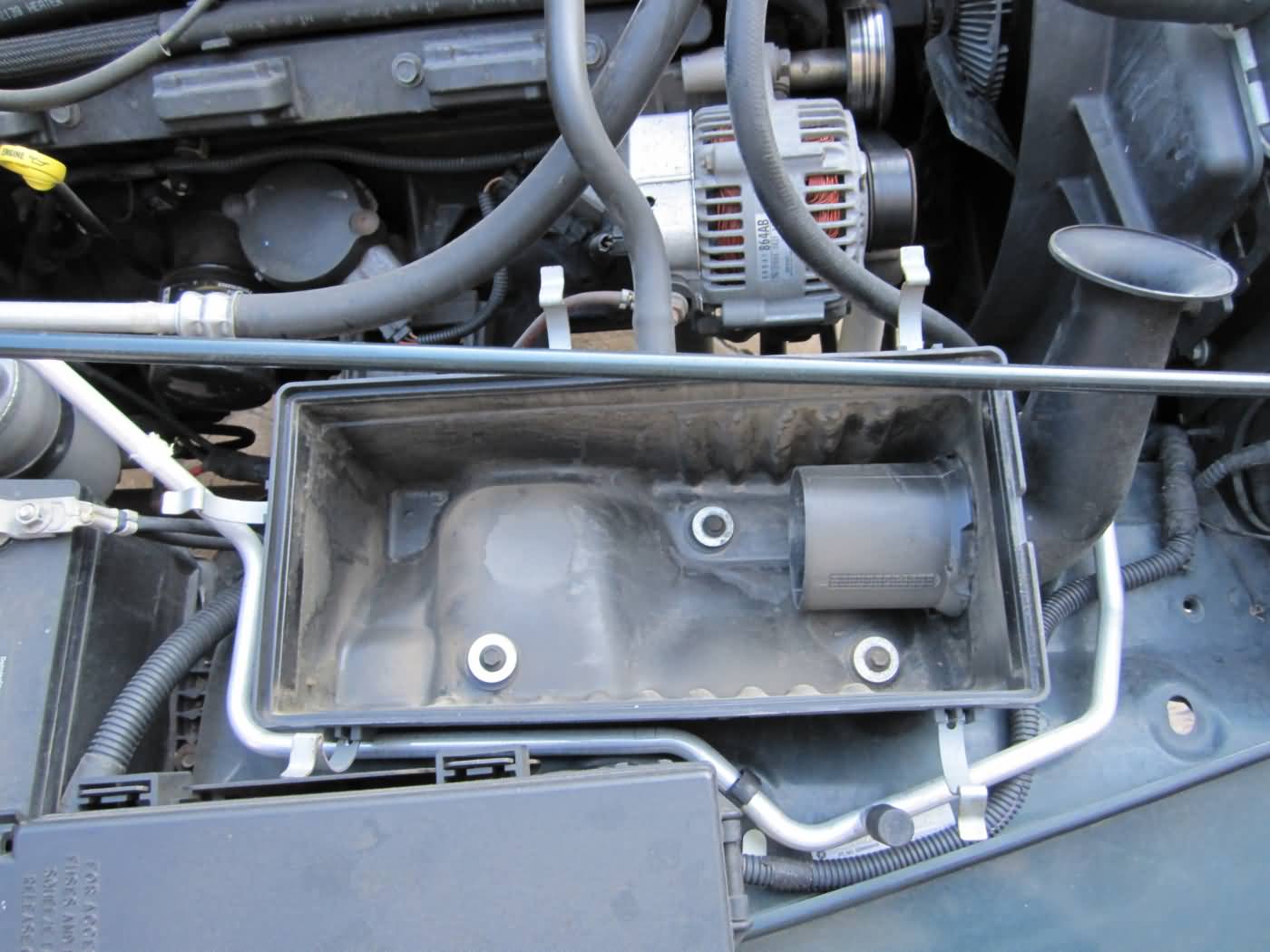

Remove the bolts that hold the air box to the body of the Jeep

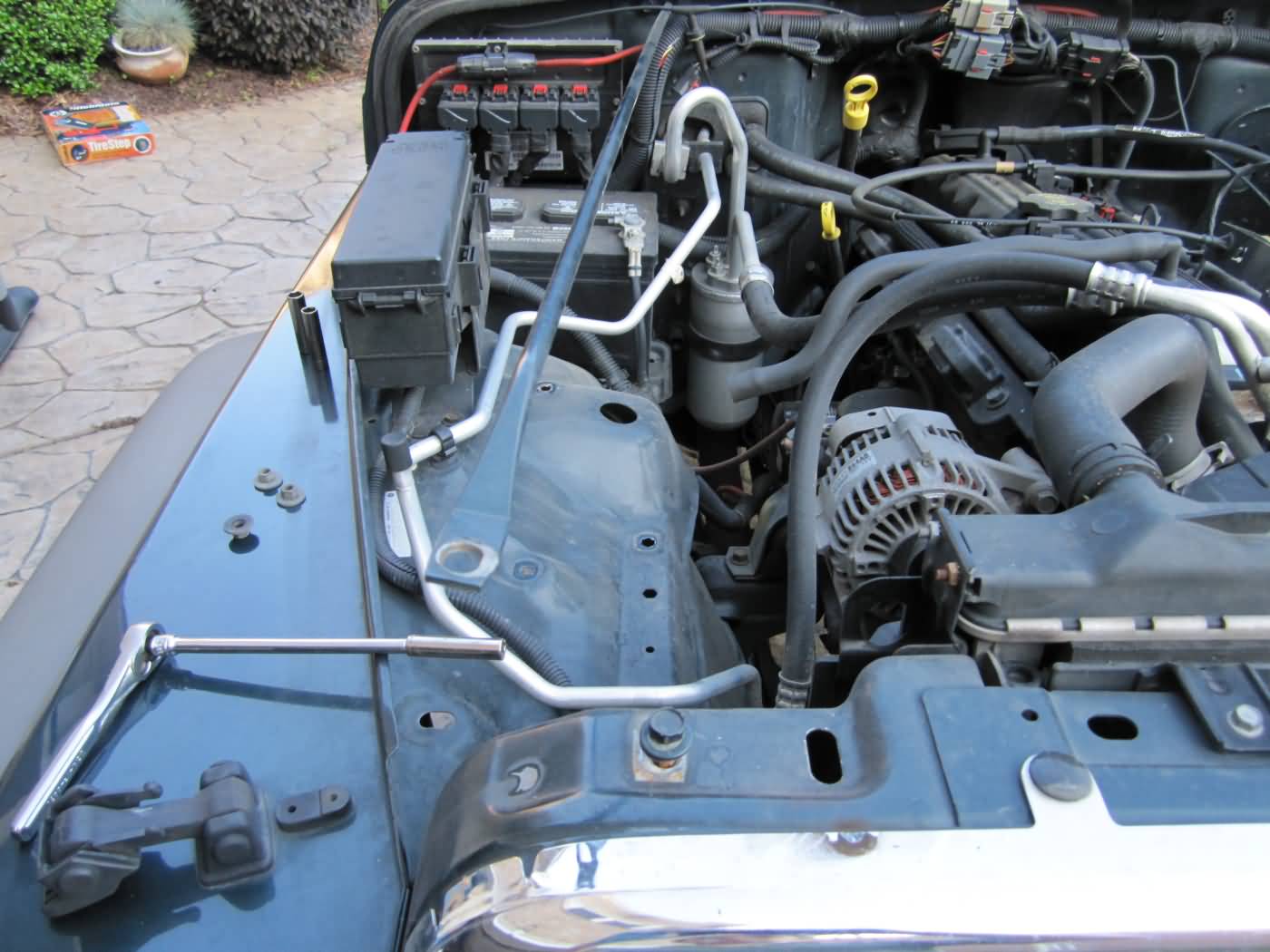

Now, remove the crossmember by unbolting both the front and back.

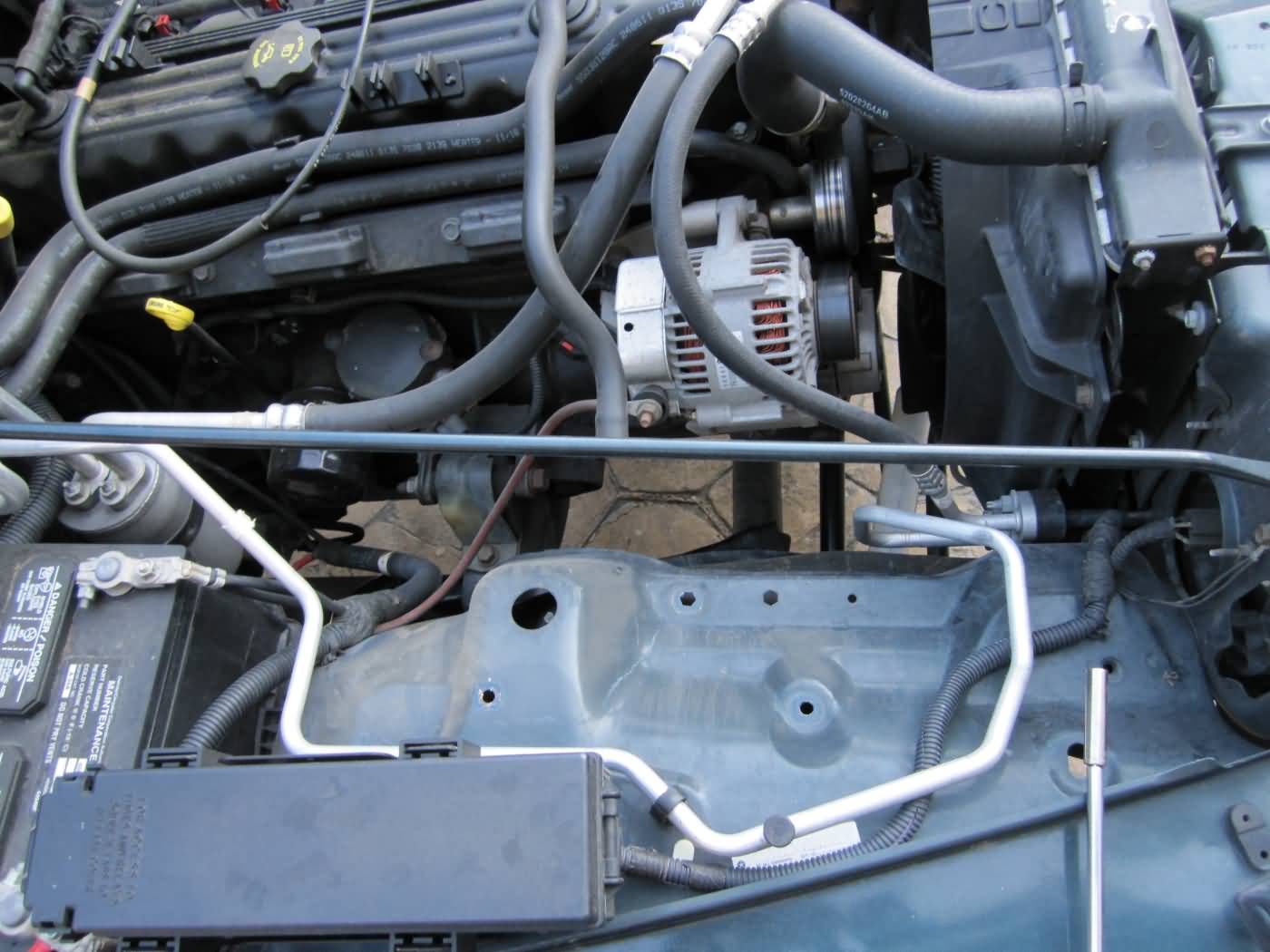

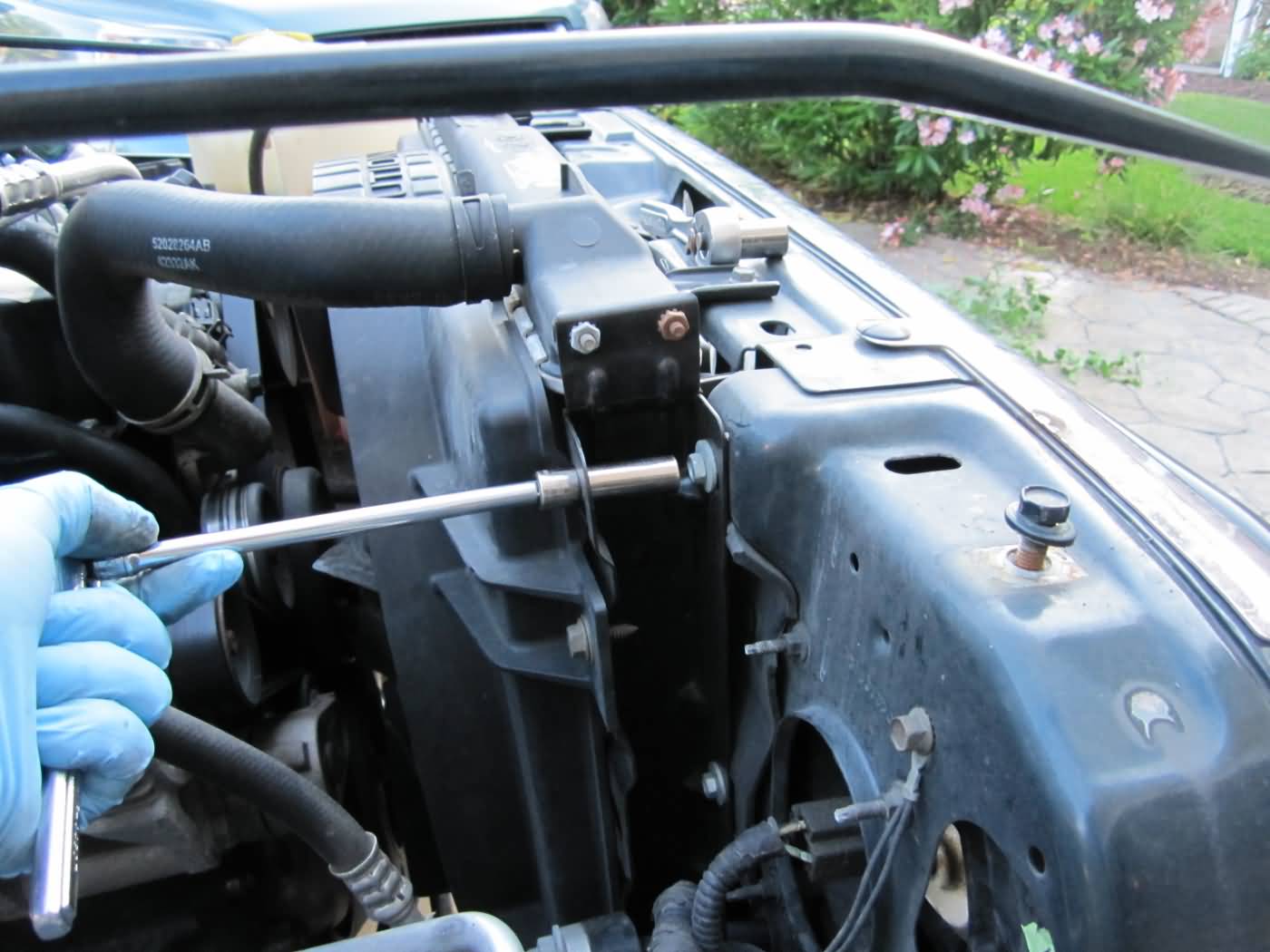

The final part of removing the factory setup is to remove the top radiator bolt



[TerryMason]

Step 2 - Install the new cold air intake

Now that the factory stuff is out of the way, we just need to install the new cold air intake

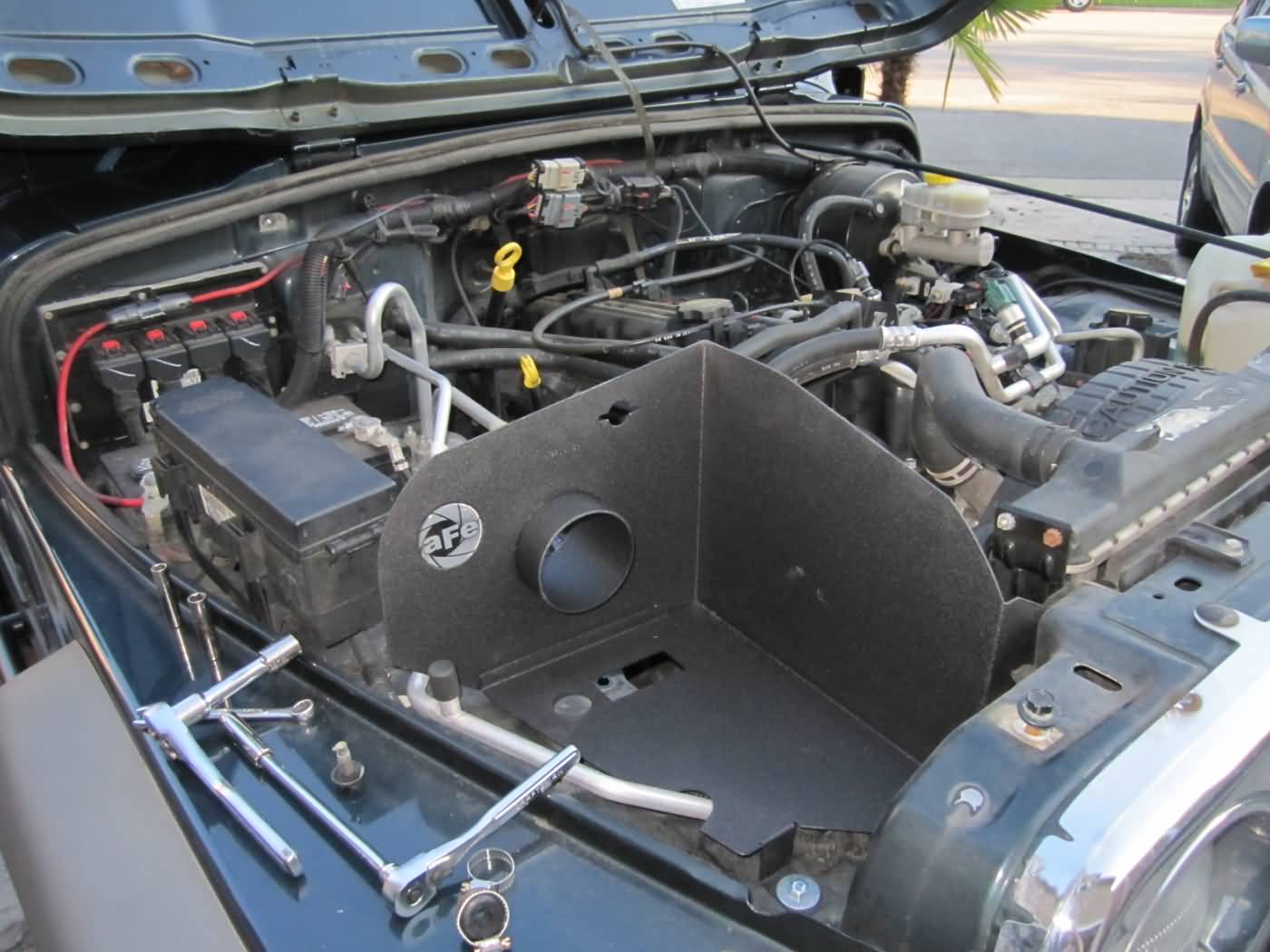

Start by bolting the new cold air intake base into place

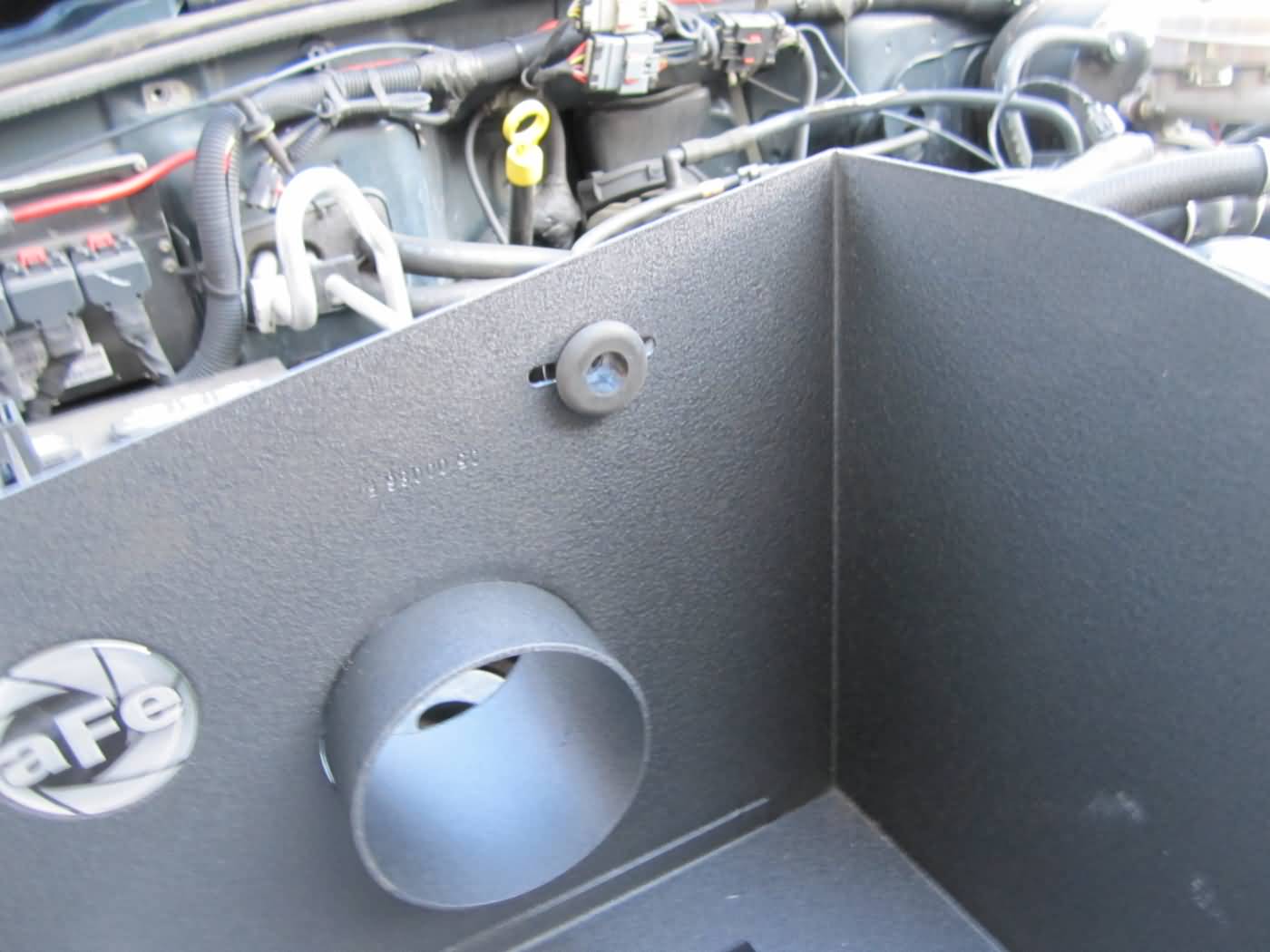

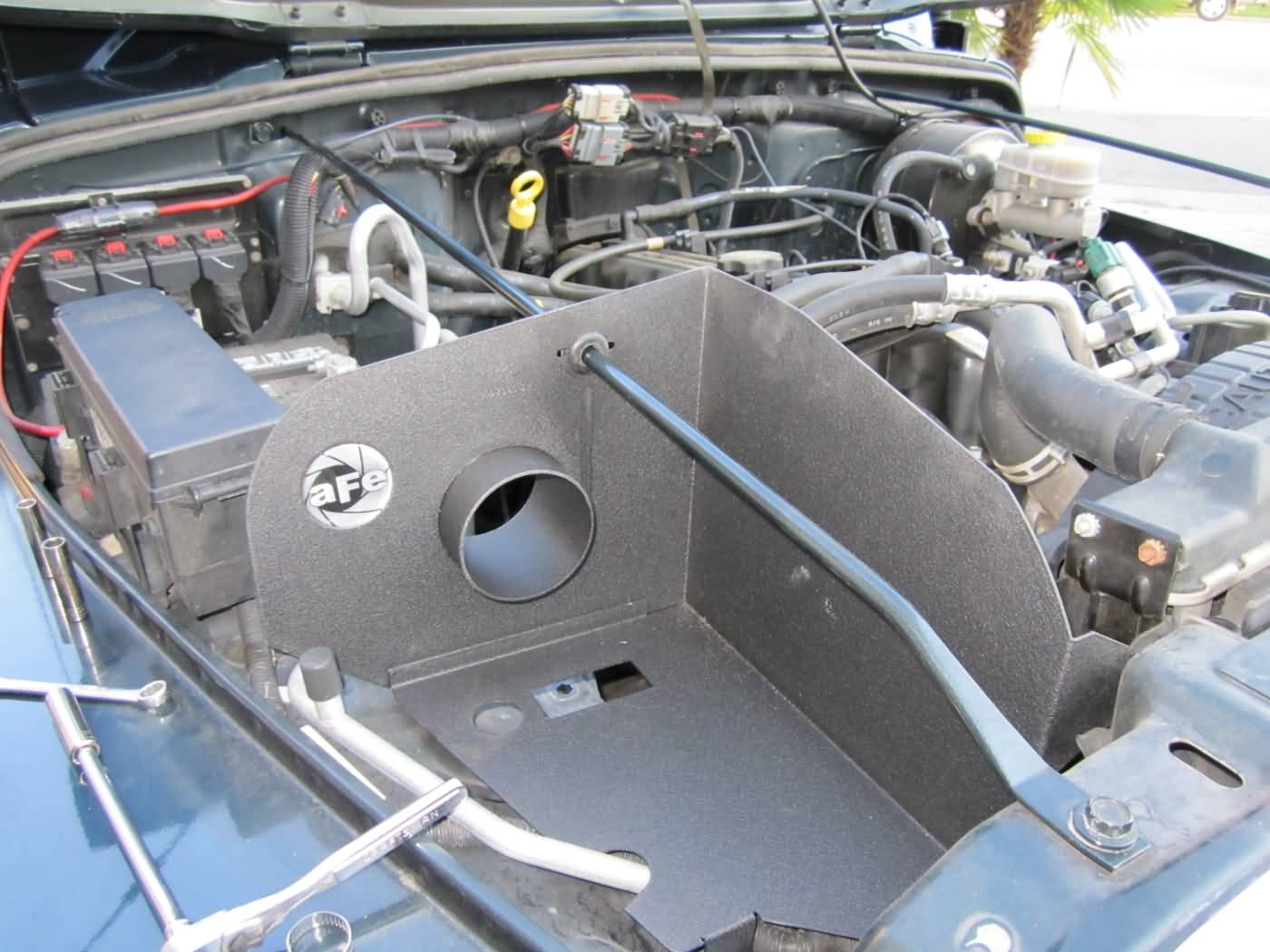

Install the grommet into place and fish the cross member back through

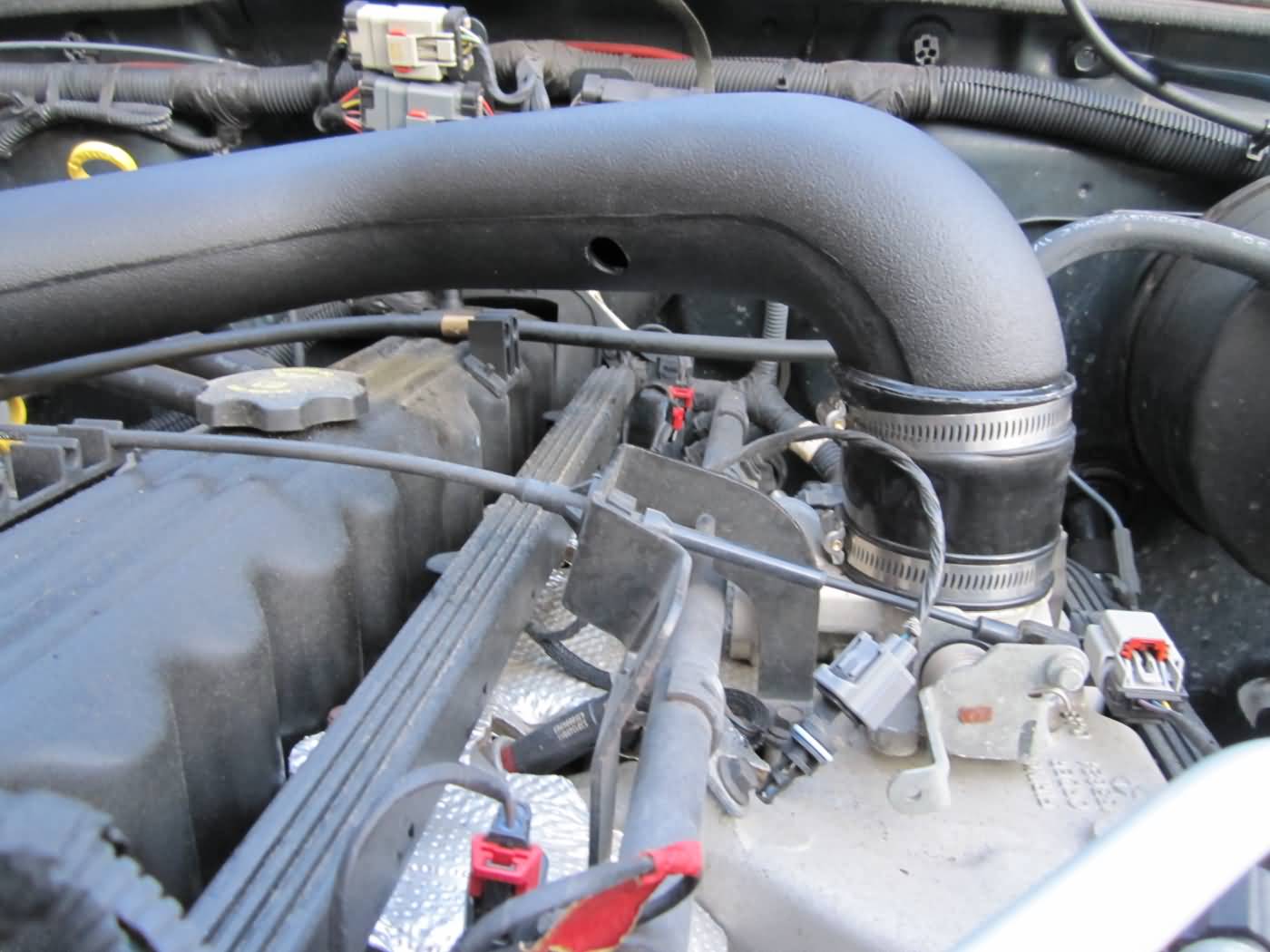

Now you can clamp the engine side of the intake into place.

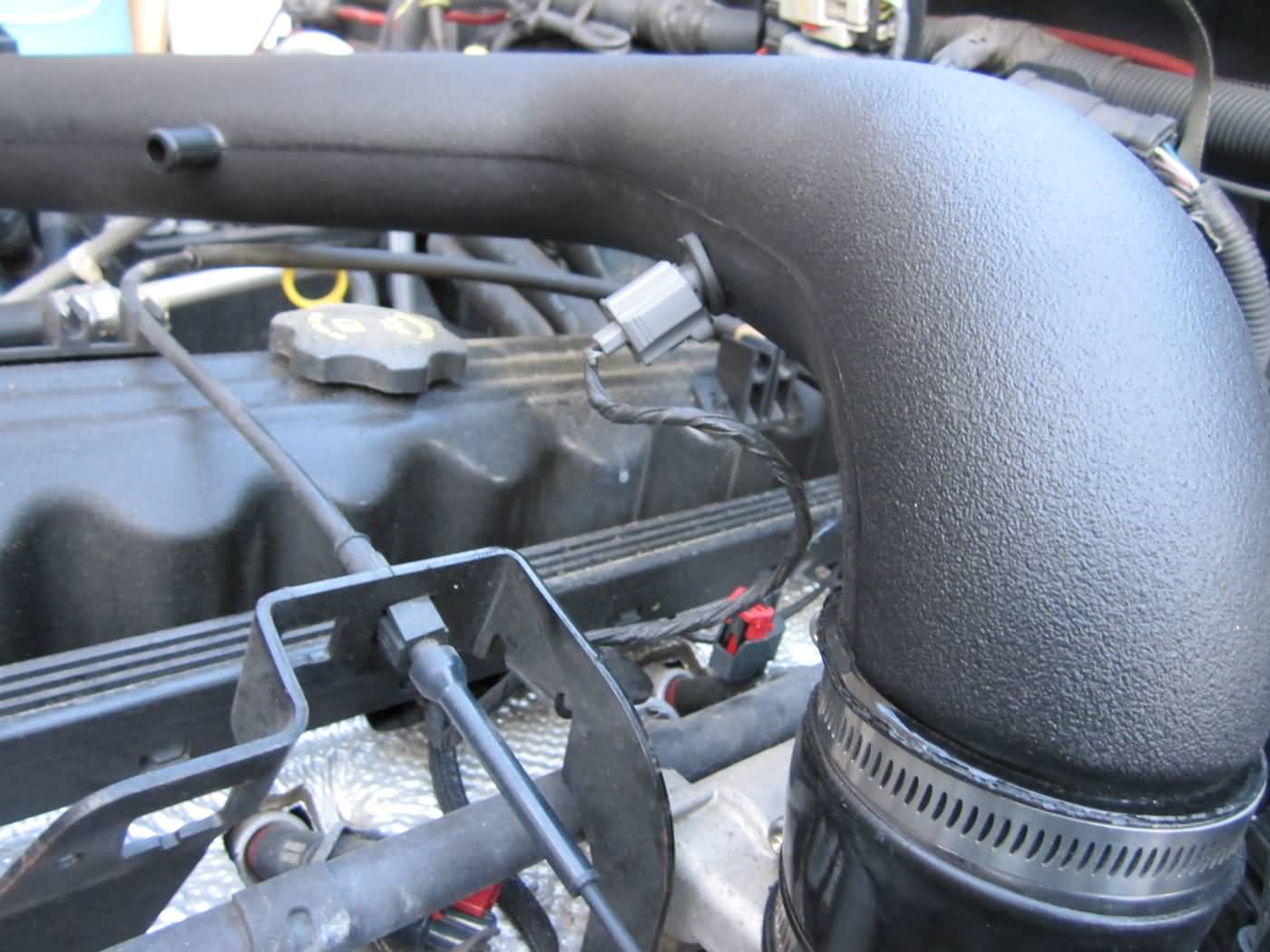

Then install the air sensor into the new intake

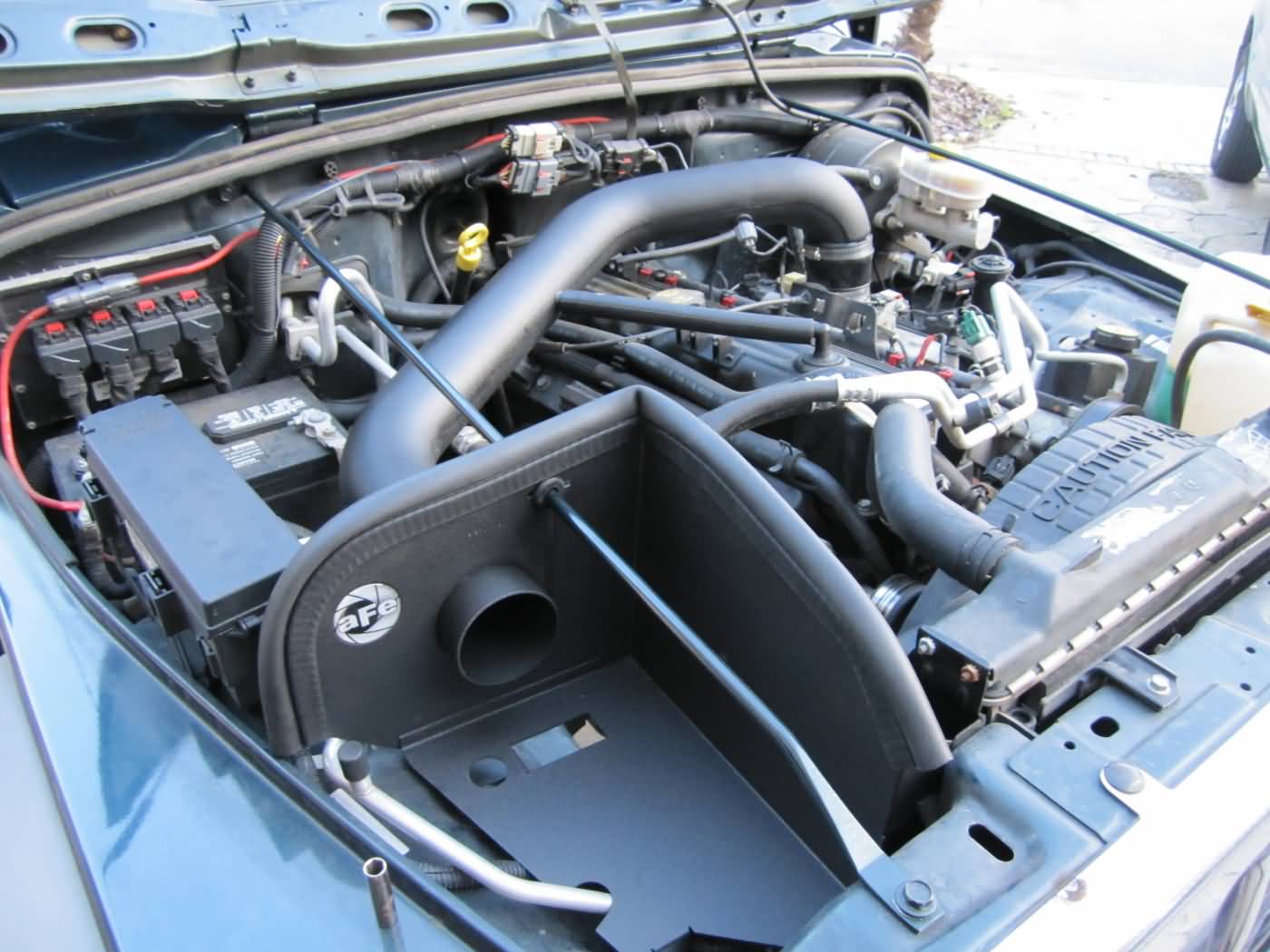

And connect the PCV valve into the new intake

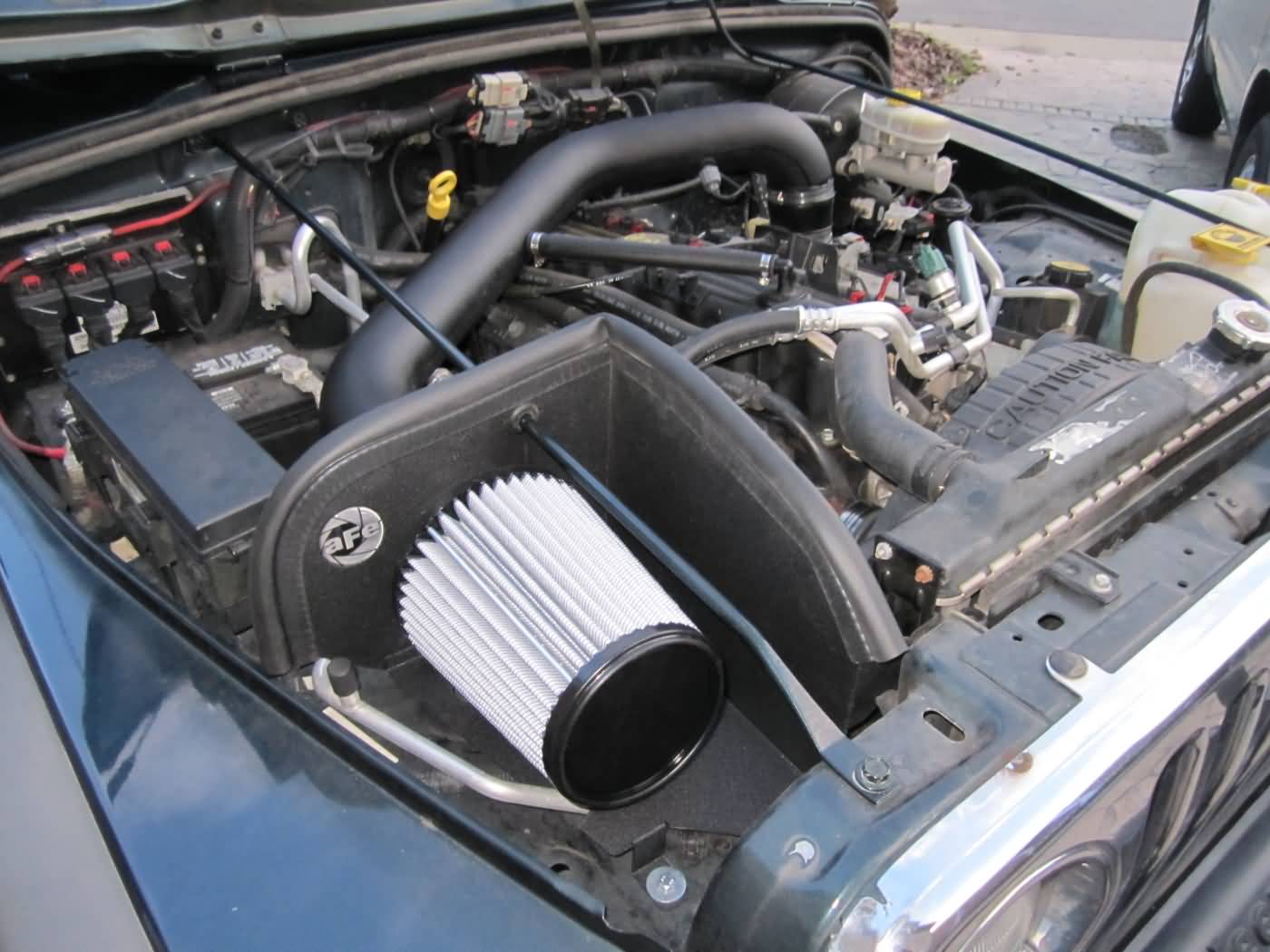

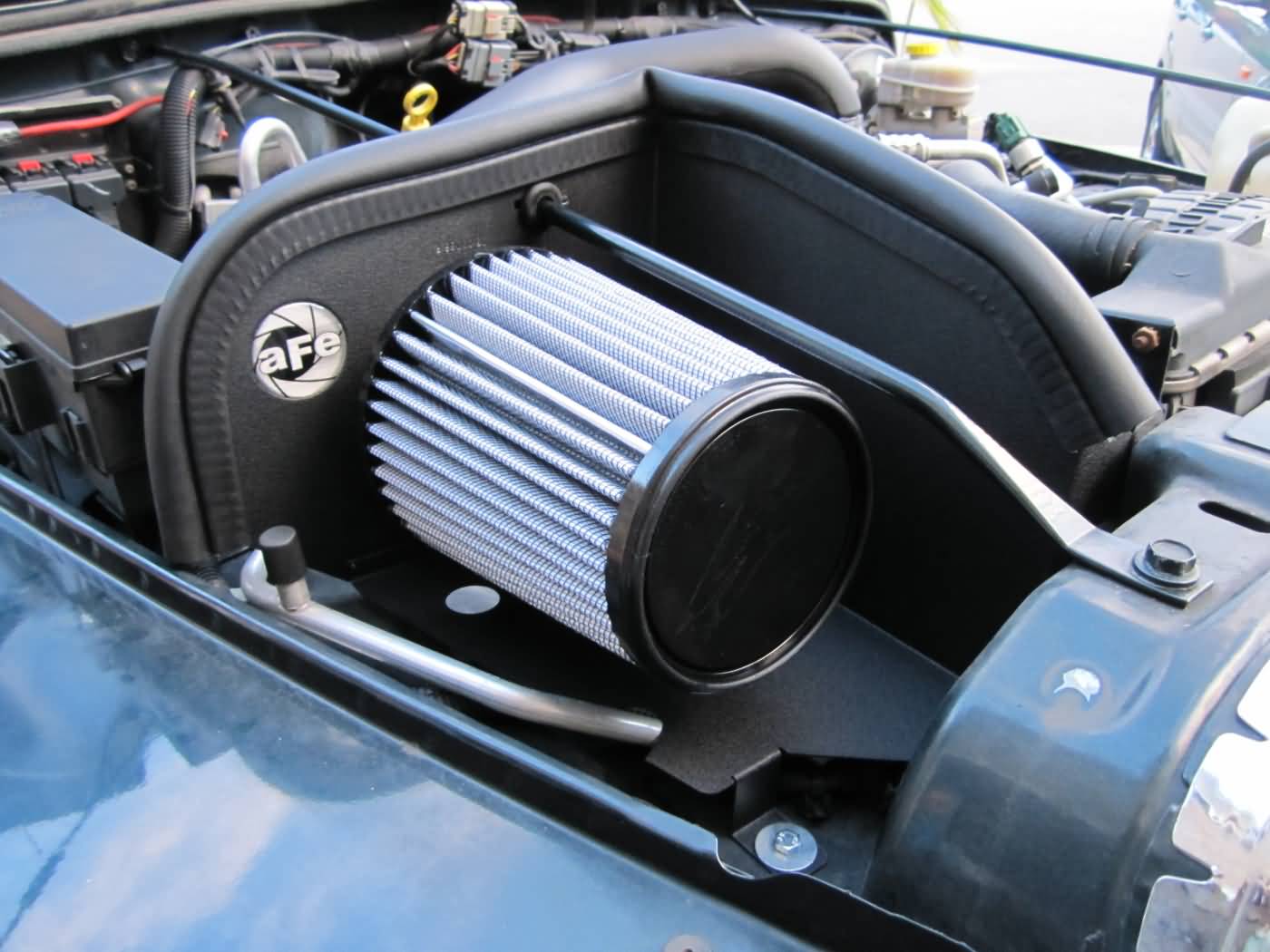

Now you’re ready to install the filter itself. It secures into place with large hose clamps



[TerryMason]

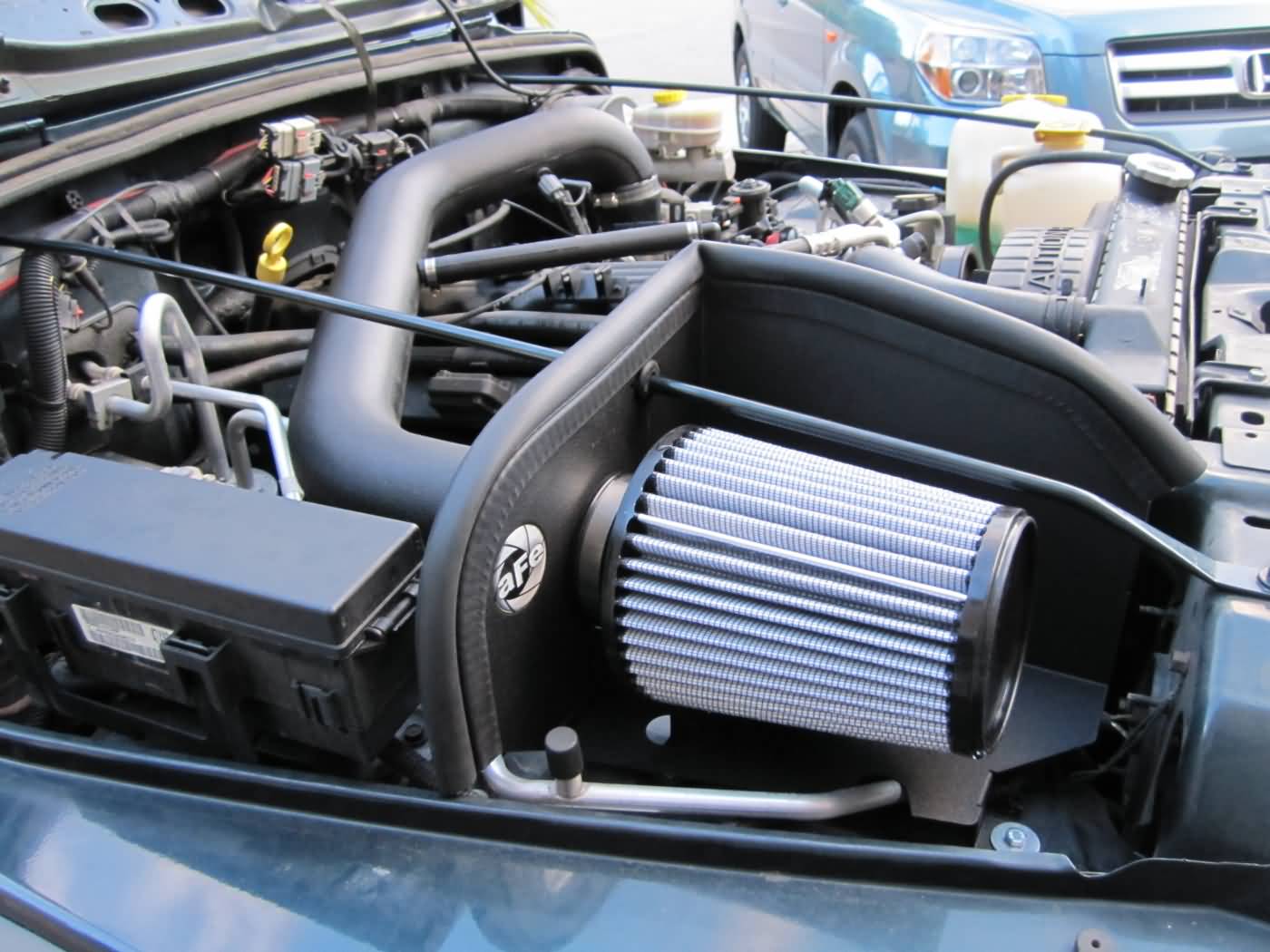

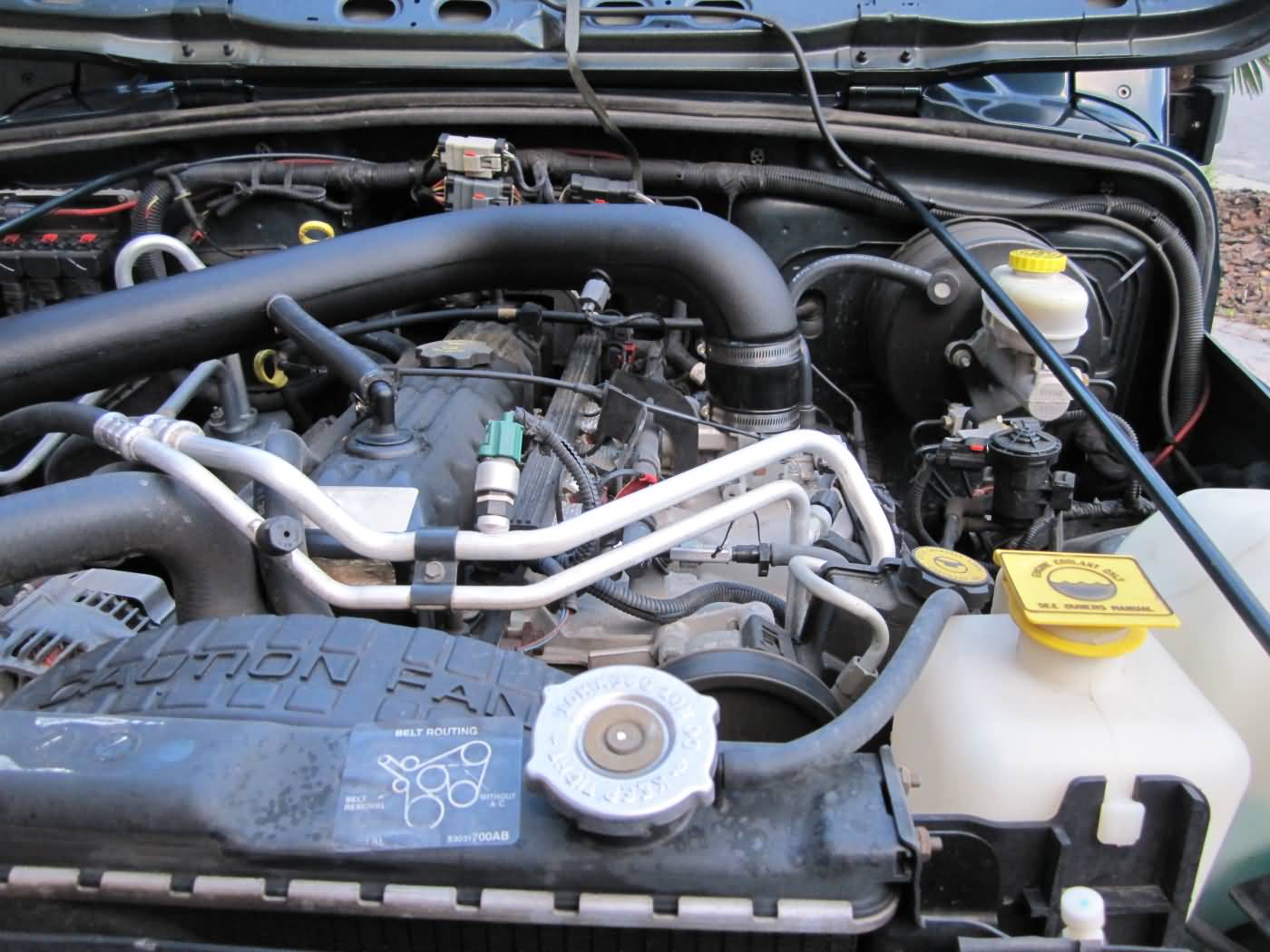

The finished product - Jeep Cold Air Intake Install

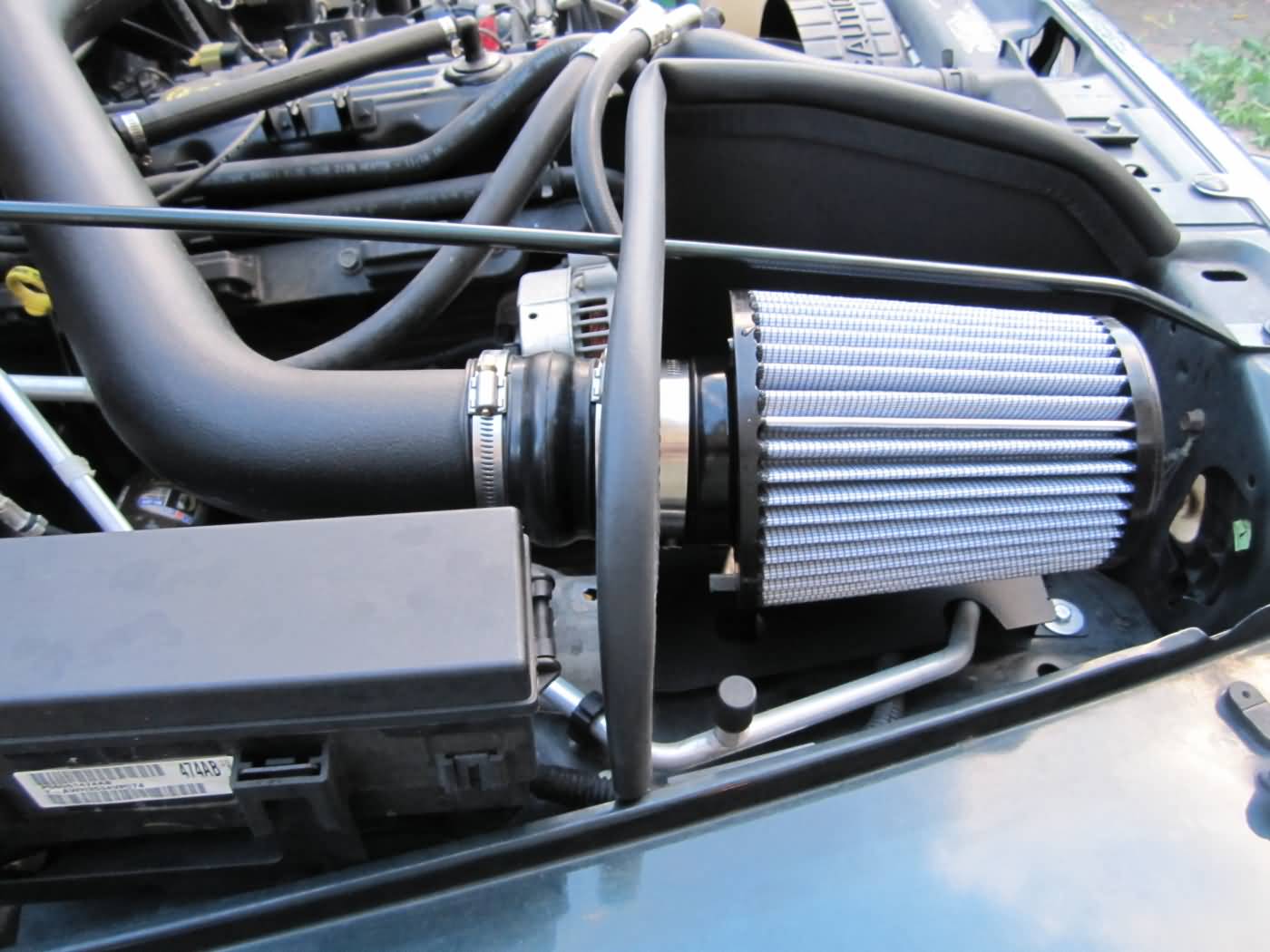

Here are some shots of the installed cold air intake. Overall it's a nice upgrade. My engine feels slightly more powerful, but that's most likely because it sounds tougher when you really get into the throttle (it sounds the same under normal driving but has a more throaty sound at full throttle.
