wideband o2 sensor

[superj]

since i no longer needed the factory o2 and i was wondering how the jets in this holley were running, i installed my innovate lc1 wideband. i am still resoldering hte controller wiring but once i get it all done, i can just hook my laptop to the plug and drive around and see what air fuel mixture i use the whole time. then, i can make any adjustments if its needed and also, i can be ready when i do other mods so i can see what adjustments need to be made then.

this is the kit. i have had it for about 5 years because it went with the stand alone i built for my bmw while preparing to supercharge it for autocrossing. stand alone didn't work out how i wanted so i removed it all and this has been on the shelf ever since.

this is hte actual wideband o2 sensor. if i remember right, this is a ford mustang wideband o2.

this is where the stock narrow band would go and it unthreaded very nicely

here is hte wideband threaded in and ready for the controller

here is my little sticker collection. for some reason, it seems like i have a lot of muscle car stickers

the controller is a box that powers the wideband and also has a few outputs for a gauge and for m laptop to plug into. the controller goes in the engine bay and the plugs can be run anywhere a person wants them run to. i will probably just tuck it under the dash so i can pull it out when i need it because i don't need people pluging stuff into it and screwing it up because they think its for an ipod or an mp3 or something. i will get ya'll some pics of the controller and how i put it in tomorrow. i wall also copy a drive around the neighborhood and post it so you guys can check it out too.



[superj]

This image has been resized. Click this bar to view the full image. The original image is sized 960x720.

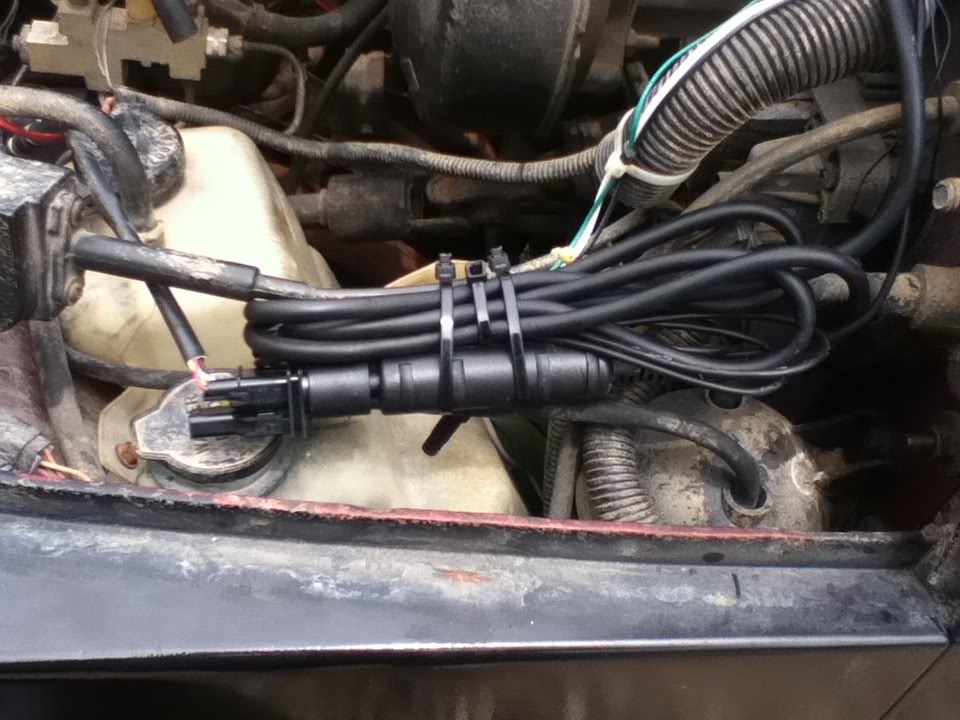

Here is the controller. I attached it to the stock cruise control sheathing

This image has been resized. Click this bar to view the full image. The original image is sized 960x720.

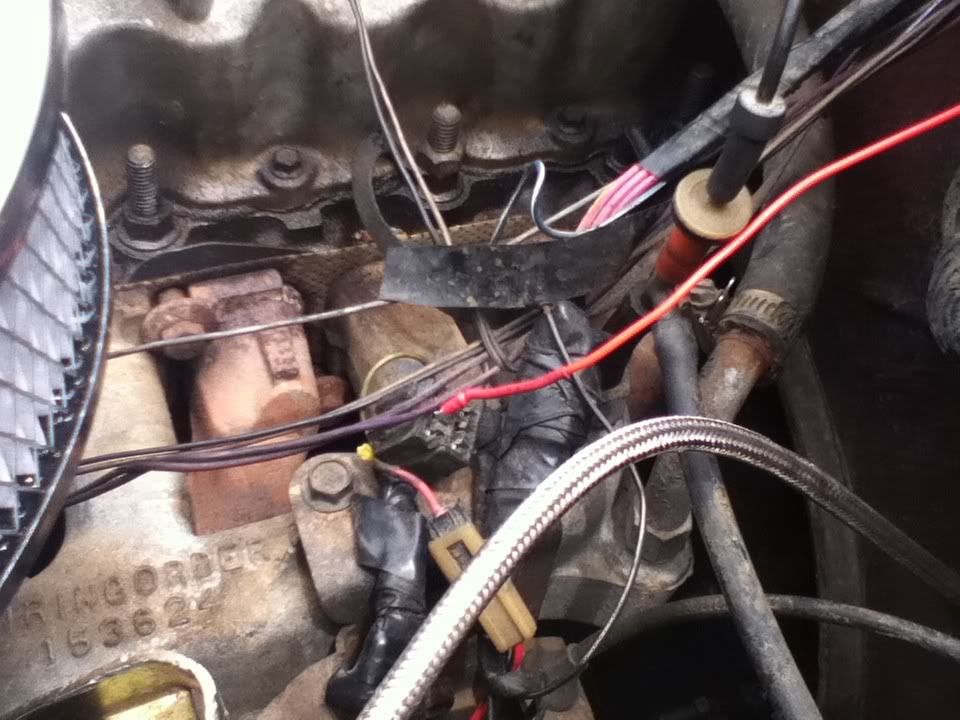

Here is the power. Turns out it is not a good spot so I will to move to another spot and make a better real connection

This image has been resized. Click this bar to view the full image. The original image is sized 960x720.

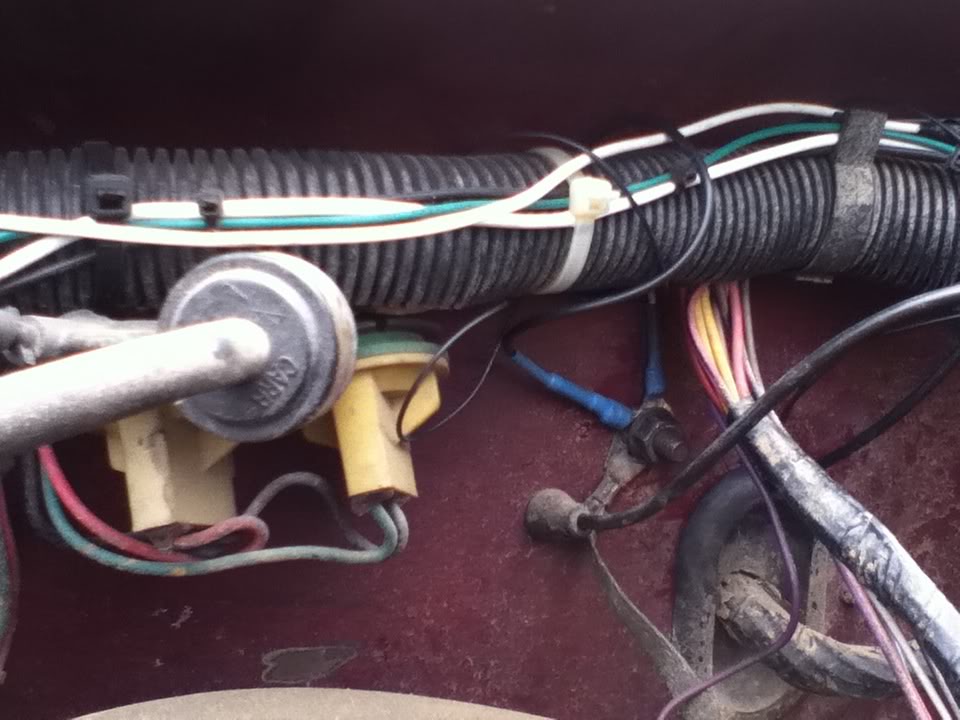

Here is the grounds, all soldered and wrapped

This image has been resized. Click this bar to view the full image. The original image is sized 960x720.

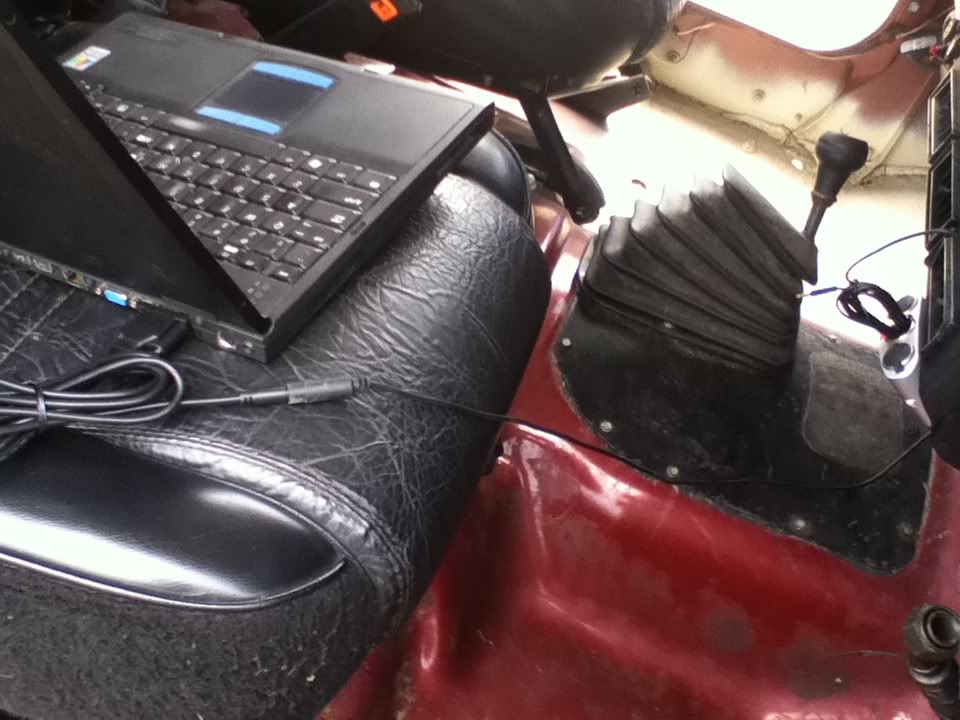

Here is the wire from the controller to the laptop. I didn't use this laptop for the run because my son didn't plug it back last time he used it so you'll see later I had to use some adapters

This image has been resized. Click this bar to view the full image. The original image is sized 960x720.

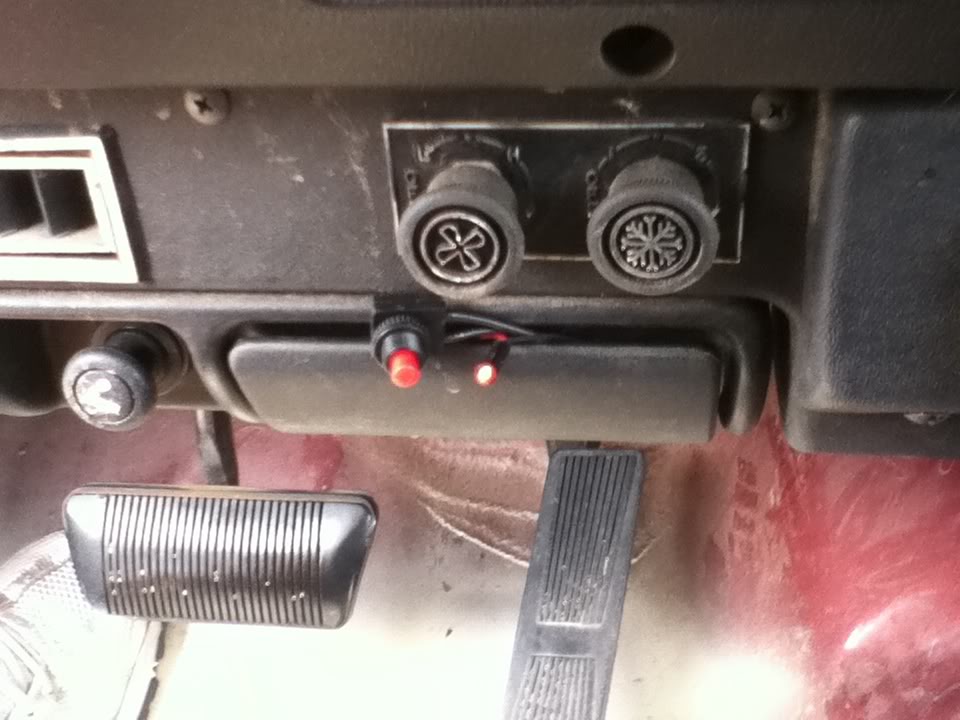

Here is the reset button and led. The led stays lit to let you know your good but if it starts flashing then you have a connection error somewhere

This image has been resized. Click this bar to view the full image. The original image is sized 960x720.

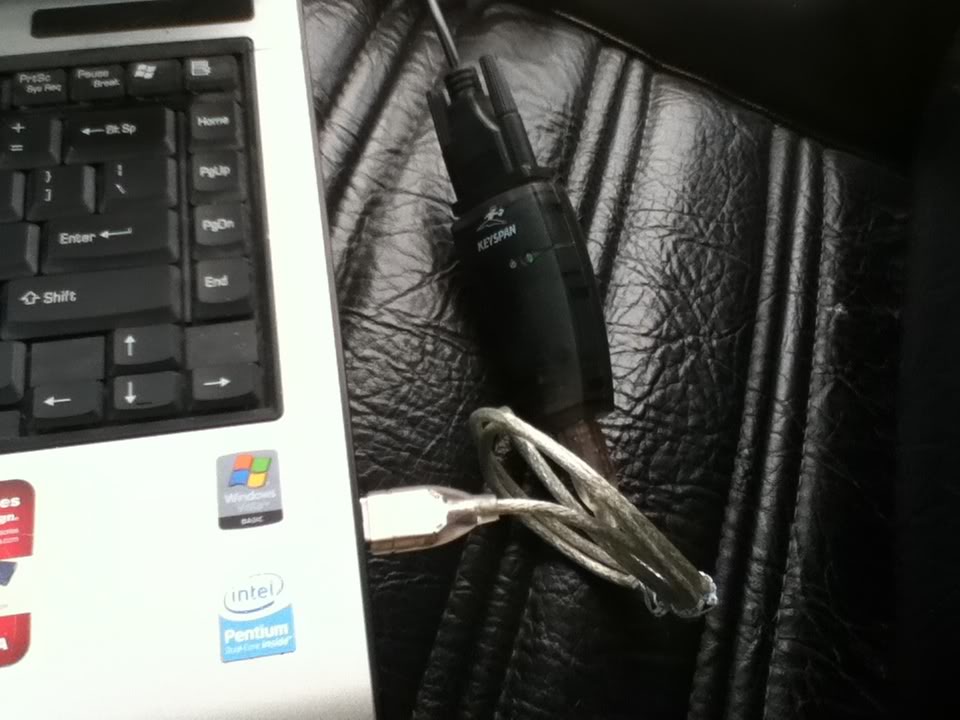

This is a serial adapter to use a newer laptop that only has USB plugs

This image has been resized. Click this bar to view the full image. The original image is sized 960x720.

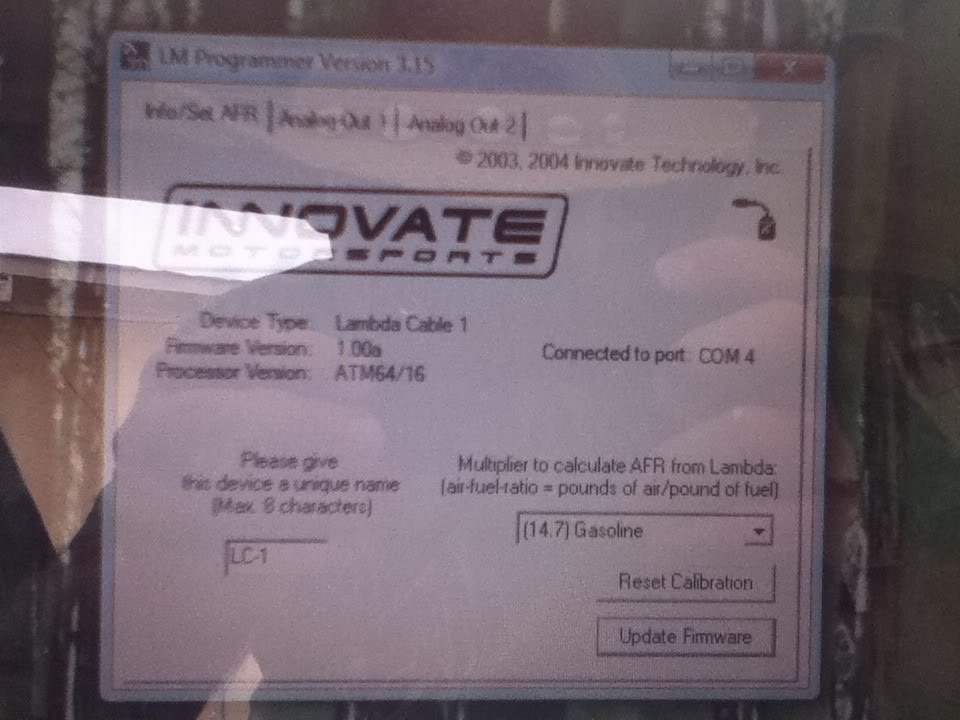

Here is what pops up when you turn the jeep on and run the programmer to make sure you are hooked up right

This image has been resized. Click this bar to view the full image. The original image is sized 960x720.

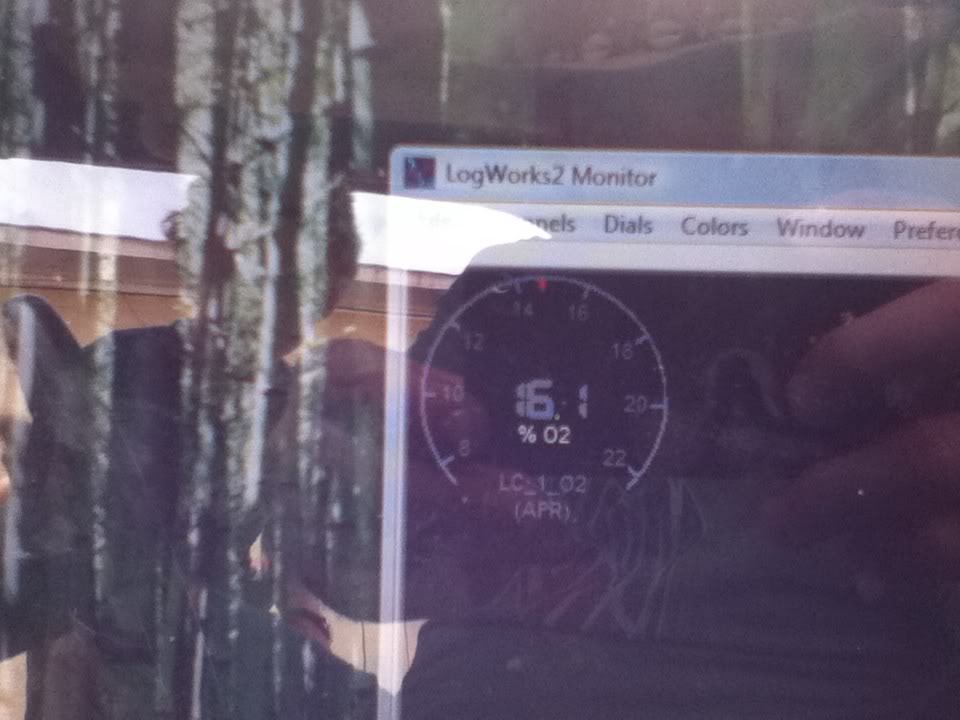

This is where your a/f ratio is shown when you plug your laptop in

I got a video with my phone but since my power source was not connected well, I kept popping an error so I will reset my power source and redo the video for you guys. I would like to record on my iPod but I have to find the video camera setting



[TerryMason]

I had the innovative kit for my old Porsche 914 and it was sweet. I think it's the same sensor and brains, but with the optional gauge. Without the wideband sensor I never could have setup those carbs.



[TerryMason]

I had the innovative kit for my old Porsche 914 and it was sweet. I think it's the same sensor and brains, but with the optional gauge. Without the wideband sensor I never could have setup those carbs.



[superj]

i think i am going to order the gauge sometime. might as well since i have this thing in the vehicle now.
