2001 xj

[Utah_jeepster]

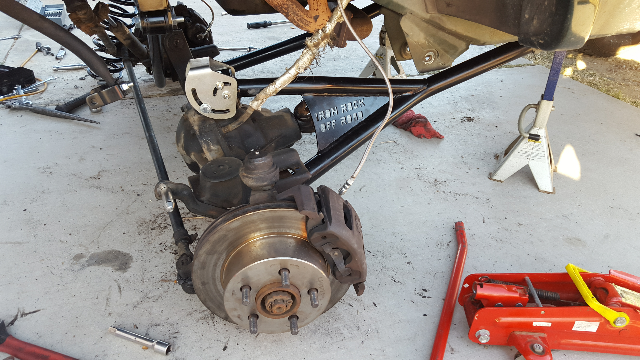

Just a few pic at the moment. This a 6.5 long arm from Iron rock. No welding just drill and tap a few holes. First for most I Hate XJ's and their #! $!#*& lifts. Will post more later.



[Gennybro]

I as well as others don't know what a long arm is. Could you elaborate a little and tell us what it is ,and the part of the pic that is the part of concern. I'm still ignorant about a lot of things. Thanks!

Happy New Year



[Utah_jeepster]

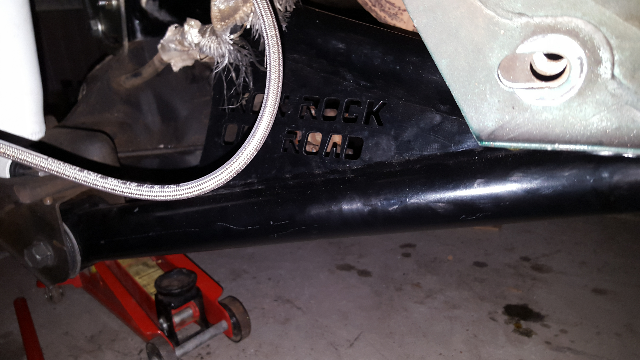

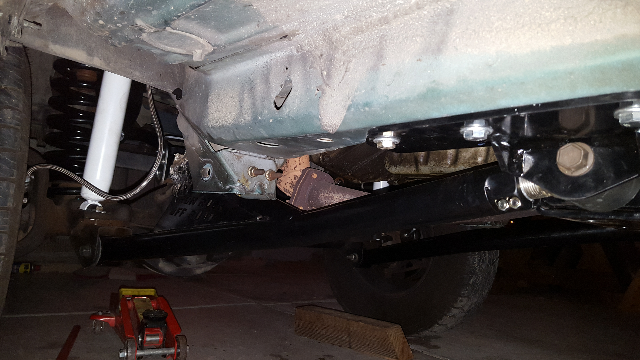

As you can see in these pictures the lower control are is now attached at the transmission cross member with the old attachment point just where the sub-frame starts its radius bend upwards. This what ment when you say long arm. Since you move the lower control arm connection point further back the amount of travel the arm makes at a bump is reduced since the radius is bigger because the attachment point is further back. This kit is a tri-link kit that attaches the upper control arm to the lower.



[TerryMason]

I think I missed something - are you building out an XJ?



[Utah_jeepster]

Yes I am building an XJ.

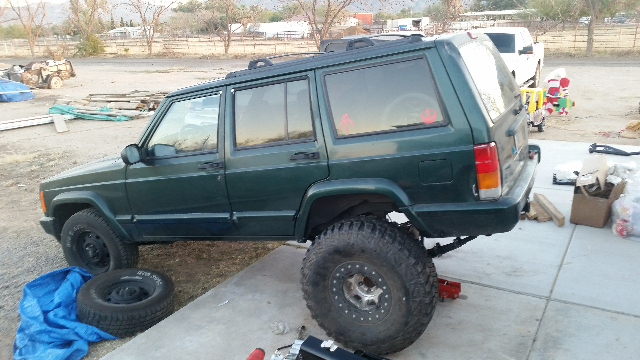

Here it is with my spare on her.



[greg92jeepxj]

Gee wiz , I never had you figured as an XJ guy. But I respect you turning a grocery getter into a formidable off roader . That'll fix any chance of high centering. Long live the Cherokee !



[Utah_jeepster]

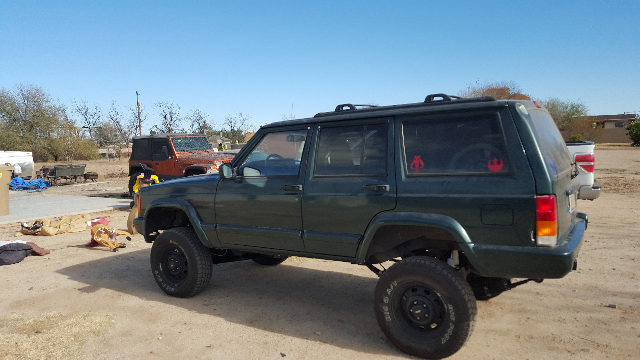

Done for now,



[TerryMason]

I'm jealous. That's a nice looking truck.



[Bounty__Hunter]

Let us know how it goes removing the old control arm mounts.



[Utah_jeepster]

Let us know how it goes removing the old control arm mounts.

Any suggestions? Was going to cut the inner piece out, then fold in the outer layer and stitch weld it together.



[TerryMason]

So, how'd the XJ turn out?
