1988 Cherokee Laredo 4.0 straight 6 dash and tail lights do not come on

[Jewel]

Hello,

My Jeeps head lights come on however my tail lights and instrument lights do not . . do you have an answer for me in regards in repairing it.




Peace ,Jewel



[greg92jeepxj]

Hello, My Jeeps head lights come on however my tail lights and instrument lights do not . . do you have an answer for me in regards in repairing it. Peace ,Jewel

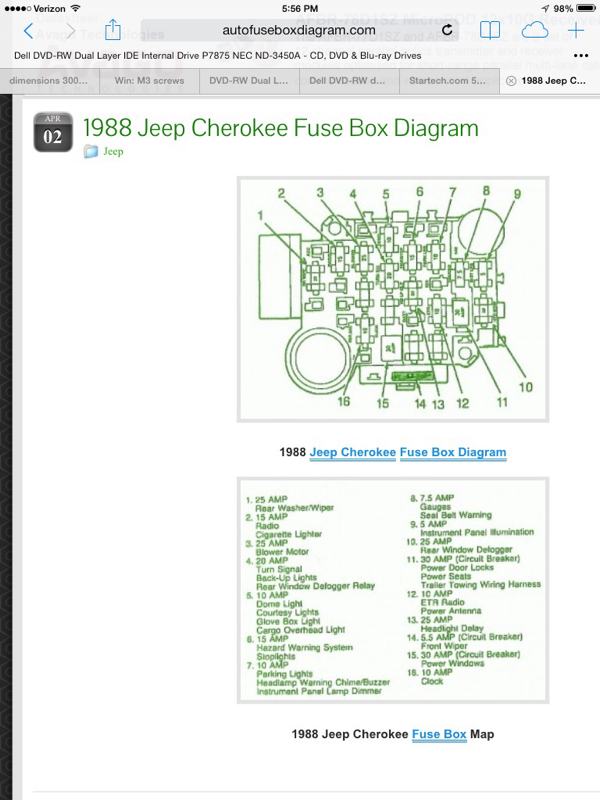

Hers a quick pic of the fuse box . Look for any blown fuses but fuse # 4, 6 , 7, & 9 should be looked at first . If any fuses blow after replacement , that will certainly mean there is a short . It this should happen , post back which one or which ones.
