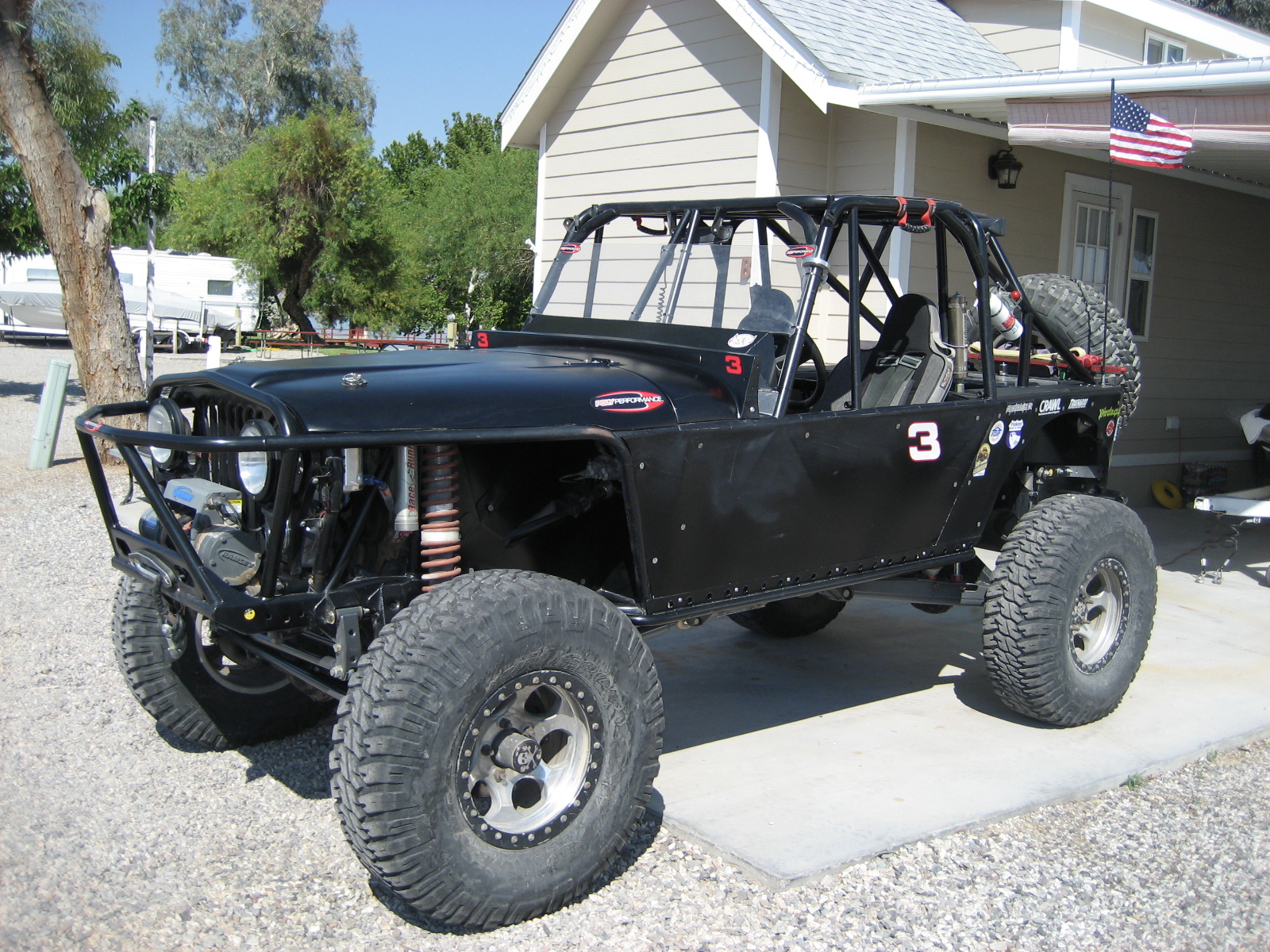

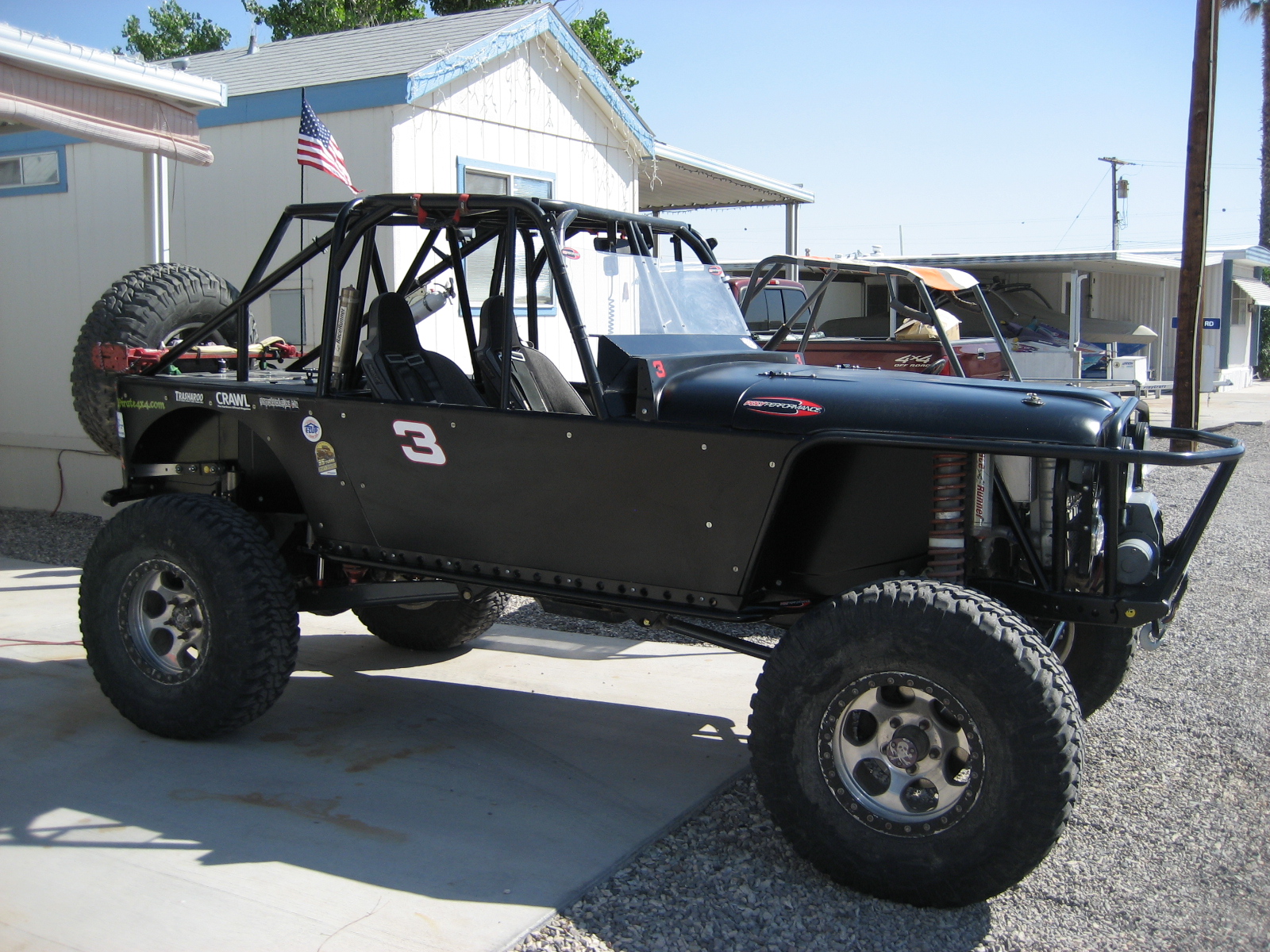

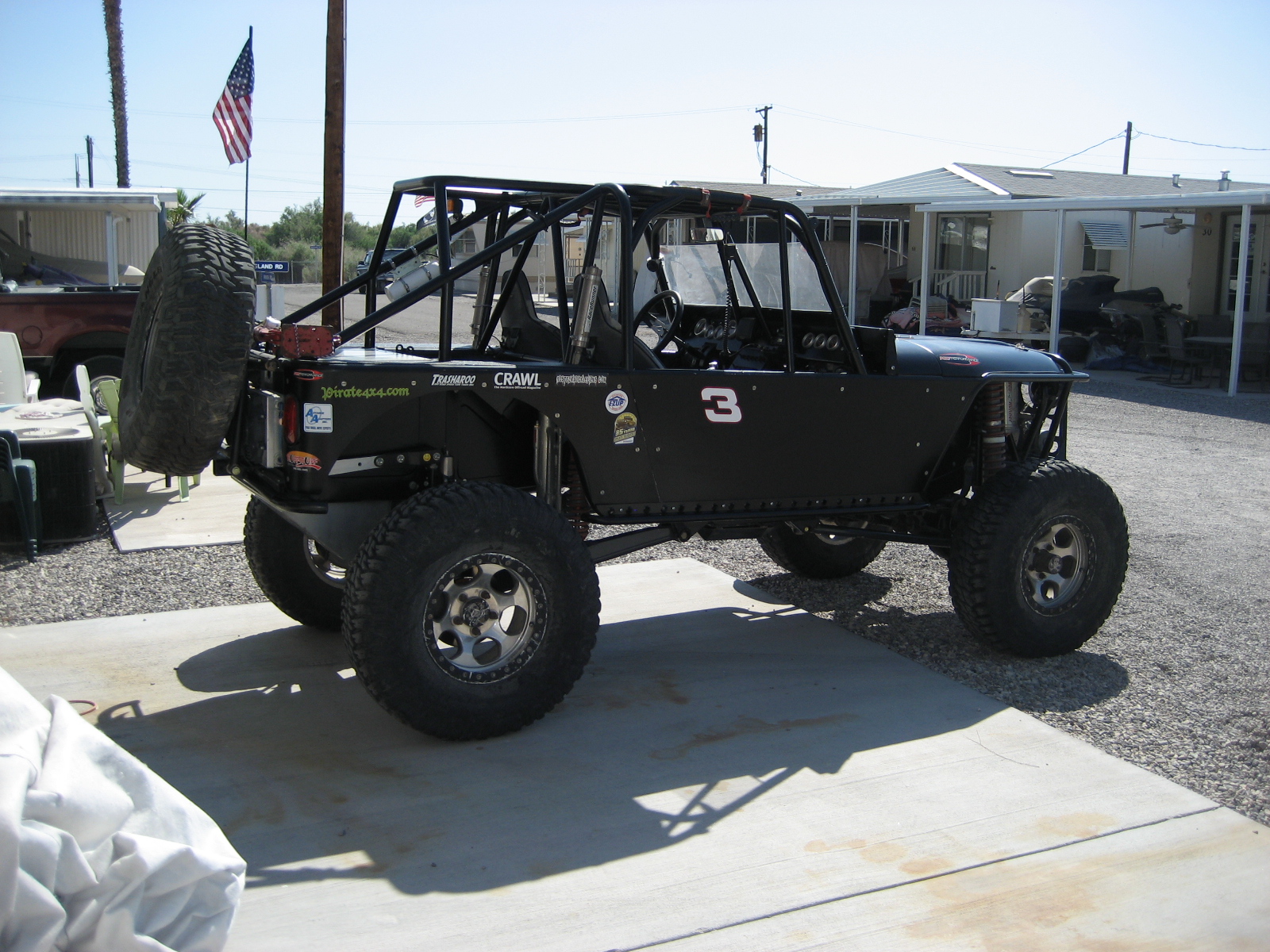

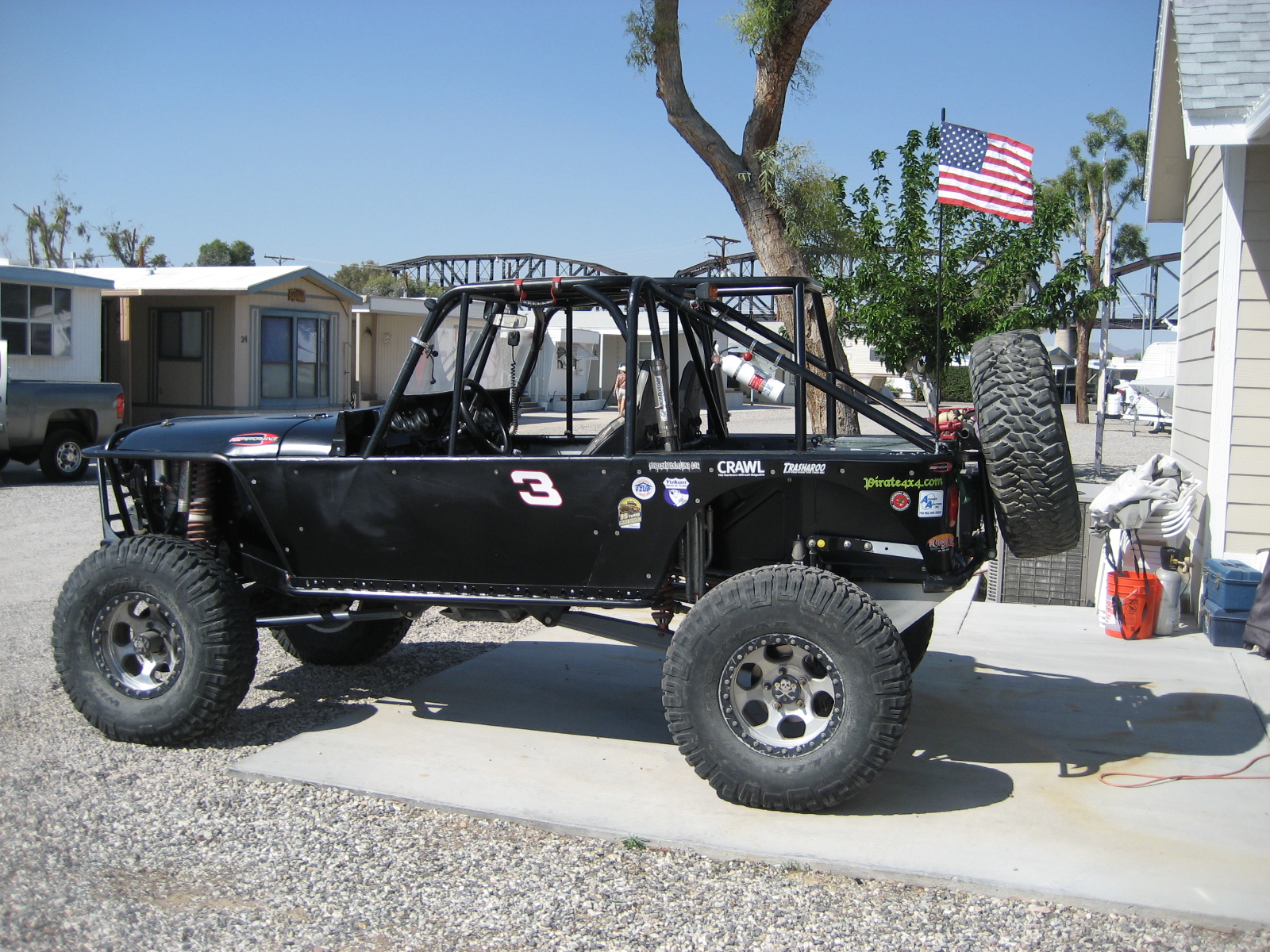

This finished 12th in the 08 King of the Hammers Race, had the best times in the desert section of the race.
Awesome multipurpose rig, great pre-runner and great rock crawler, awesome all around rig. This was featured on the cover of JP magazine.
Price: $30,000
Located in Parker, Az,
562-884-6680
Here are the specs:
Registered as a 1970 CJ5 so no CA smog
Mostly TIG welded chromoly chassis, mostly 1 3/4 x .120
107" WB
Chevy 350 TBI engine, Howell harness
700R4 trans with reverse manual valve body
Atlas 3.8
JE Reel 1310 CV drive shafts
Rearend:
High pinion Ford Dana 60 housing
Chromoly tubes
Cone cover and truss
Cone floater hubs and spindles
Poly Performance drive gears
35 spline, Gun drilled 4340 axle shafts with spare set
Wilwood disc brakes
5/8 studs, 5 x 5.5
4.88 Richmond gears
Spool
Front end
Ford high pinion Dana 44
chromoly tubes
Superior Chromoly Axles with Super joints, with spare set of chromoly axles
4.88 Richmond gears
Detroit locker
Parts mike knuckles
Big chevy spindles
Heat treated Chromoly tie rod
Poly Performance drive gears
5/8 studs, 5 x 5.5
Front Suspension
Custom 3-link with track bar, 16" travel
PSC steering with custom ram assist
Steering works awesome, no bump steer!!Sway-A-Way 2.5 x 16 coil over shocks with Eibach springs
Sway-A-Way 2.0 air bumps
Poly Performance limit straps
Rear suspension
Custom triangulated 3 link, all the best parts used
Shocks mounted on lower arms, 20" travel
SAW 2.0 x 12 coil over
SAW 2.5 x 12 custom external bypass
SAW 2.0 air bumps
Custom anti-sway bar
Poly Performance limit straps
Other Features
17" Robby Gordon Bead Lock wheels
37" Goodyear MTRs (5)
6 KC 8" 130W lights
Ramsey 9000 lb winch
Rear amber light
Window nets
Avcom intercom
Vertex race radio
Mastercraft Pro seats with adjustable lumbar
Crow seat belts
Autometer gauges
Wilwood brake pedal
Premier Power welder
Heater
Rhino lined floor panel
Tool storage
20 gal stainless fuel tank with in tank pump
All Russel AN race hose
Poly Performance Tilt steering column
Transmission, Oil and Power steering coolers
Highlift jack
1.
