Dan Fredrickson
New member
We make 4 different Panhard / Trackbar brackets and I get alot of questions as to why not just one?
Here is the simple answer. You are either replacing a weak factory bracket that has broken and need something stronger and more versatile or you are swapping a new axle into your rig and need something that works better or is more adaptable!

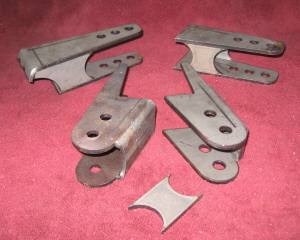

We make 2 for the axle end and 2 for the frame end. In this pic, from the top left (going clockwise) we have the Axle Offset Bracket because 70-80% of the time you need the additional room on the axle. Next we have the Axle Centered Bracket for those of you that can work with one, both have 3 height adjustment positions. The lower right shows the Frame Outside Bracket for those of you going full width and to the left the Frame Inside bracket for the relatively stock width axle. The Frame brackets both have 2 mounting positions so matching up is easy.
Remember, Selection is always the key! We have been making these for 4 years but I don't think I ever posted these here...No time like the present!

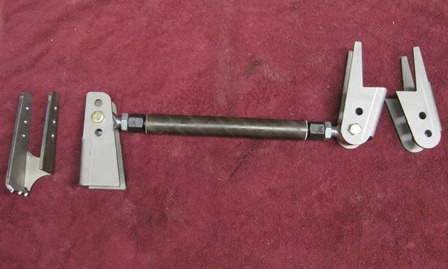

We also make the complete kit with the DOM to keep the cost down for you!
Panhard Kit - RuffStuff Specialties
